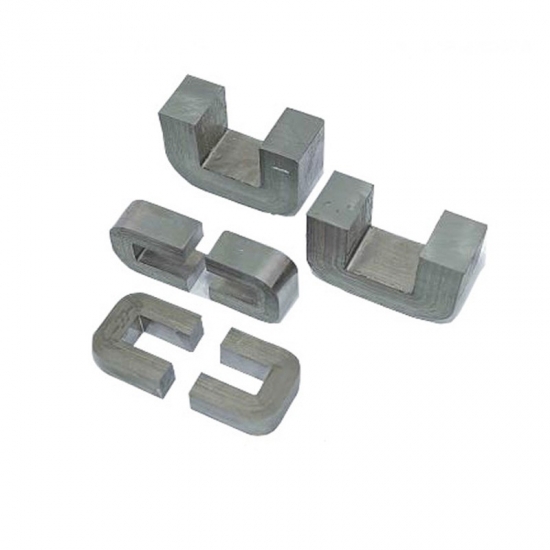

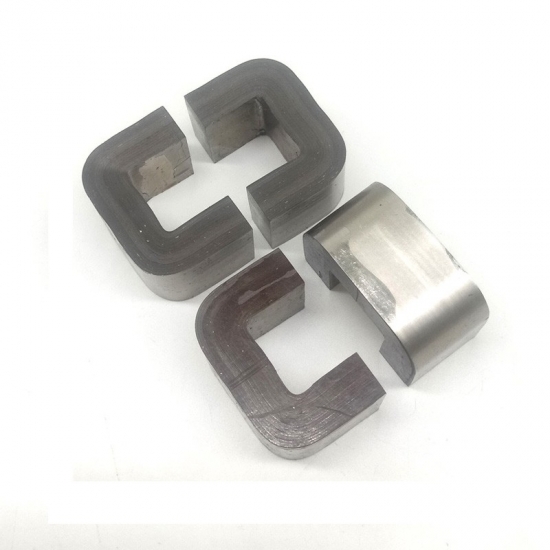

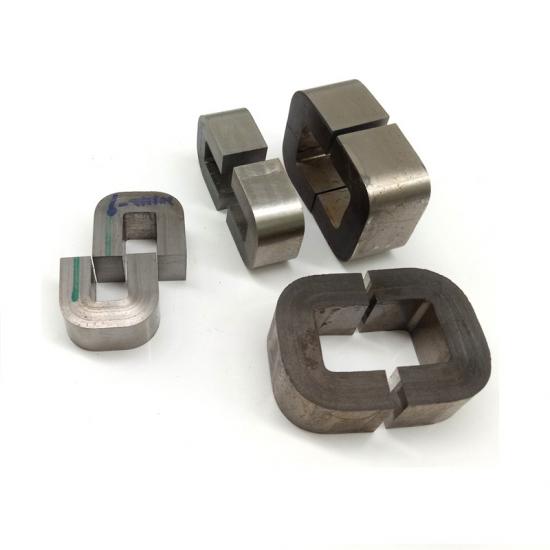

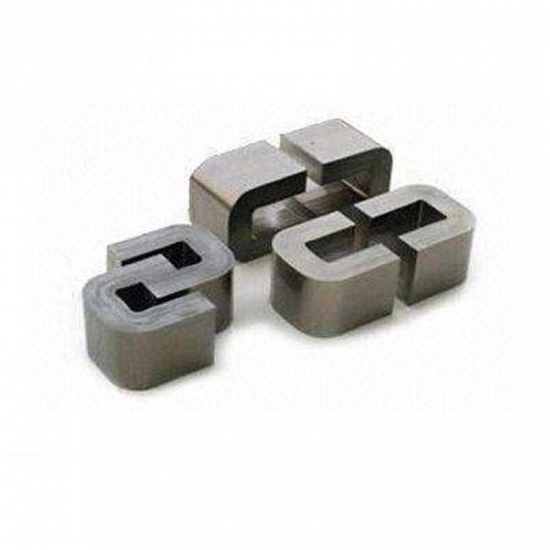

Fe-Base Amorphous C Cutting Core - (AMCC)

Fe-Base Amorphous C Cutting Core - (AMCC)

High Saturation Flux Density amorphous C Cutting Core, standard AMCC series and OEM size design supportted, popular in PFC Choke coils.

  • Product Detail

Key Properties:

  • High Saturation Flux Density - 1.56 T
  • Low Profile - enables weight and volume reductions of up to 50%
  •  Low Temperature Rise - enabling smaller compact designs,working temperature -55°C~130°C.
  • Low Core Loss - resulting from micro-thin amorphous ribbon (20-30µm)

Loss Test

Magnetical Induction Density

B=0.037T

Frequency

f=16KHz

Test Equipment

2010SA AC Soft Magnetic Tester

Iron Loss

pFe “≤ 1.2 W/kg

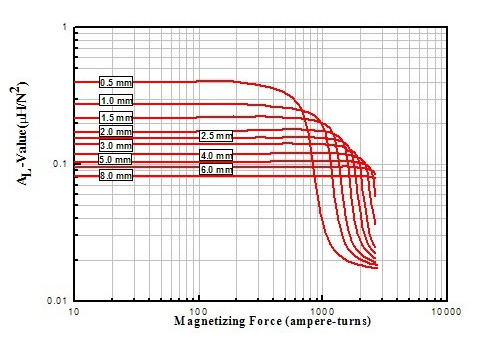

AL Test

amcc

Note:

1. Test of Iron loss and AL according to GB/T 19346-2003

2. Different permeability & inductance values can be gained by adjust air gap.


amorphous c cores



Product Specification:

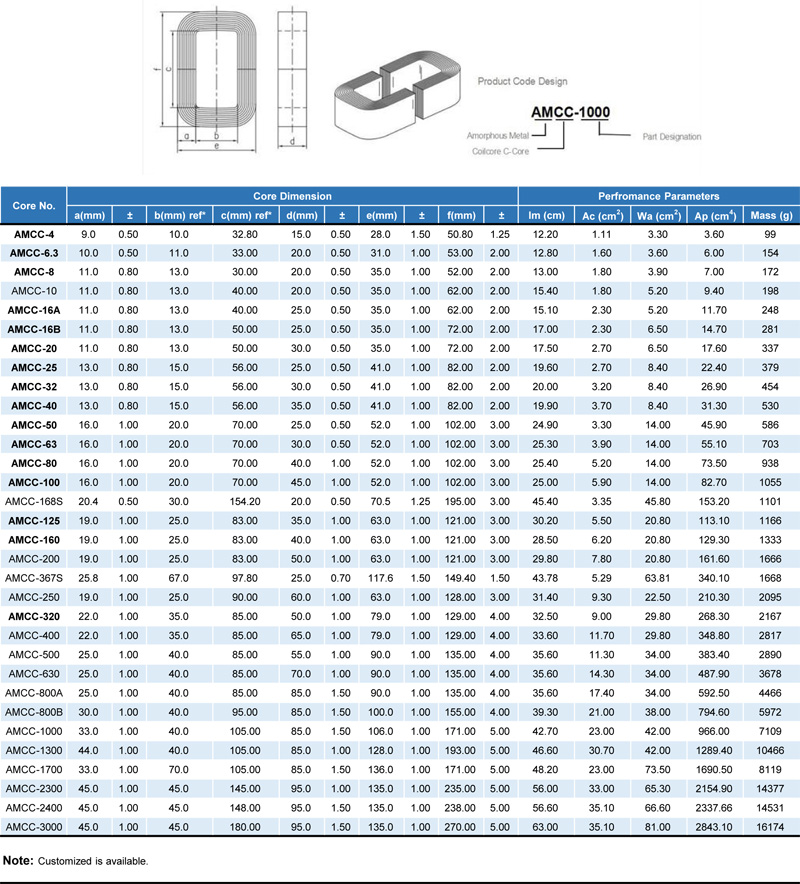

Standard AMCC series covering from AMCC4 to AMCC3000, detailed List:

 Download here.



Main Application:

  • UPS and SMPS Power Factor Correction Chokes
  • UPS Harmonic Filter Inductors
  • High-Power Outdoor Industrial Ballasts
  • Welding Power Supplies
  • High-Speed Rail Power Systems
  • Choke coil for DC/DC converter
  • Normal mode choke coil
  • Choke coil for adapter and battery charger
  • PFC choke coil




As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Amorphous Cutting Core quickly!
