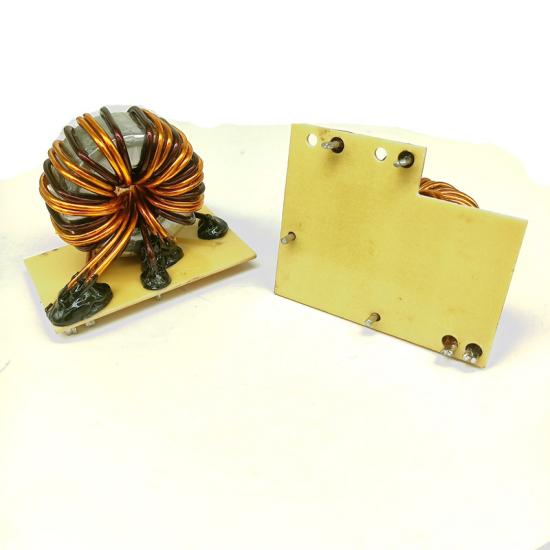

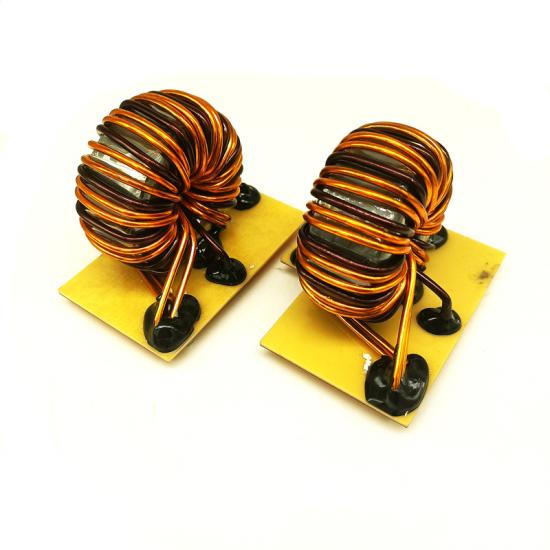

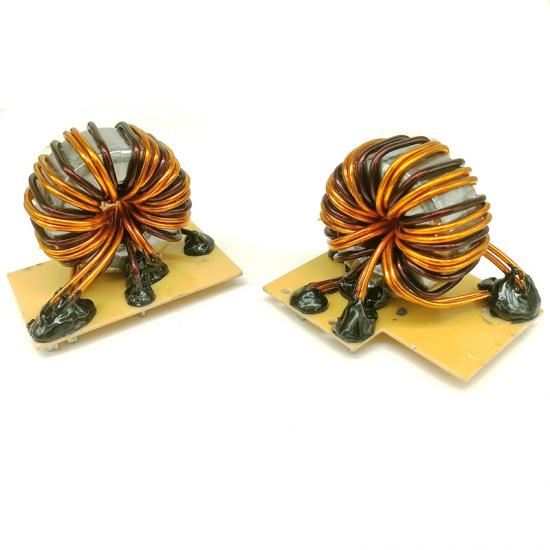

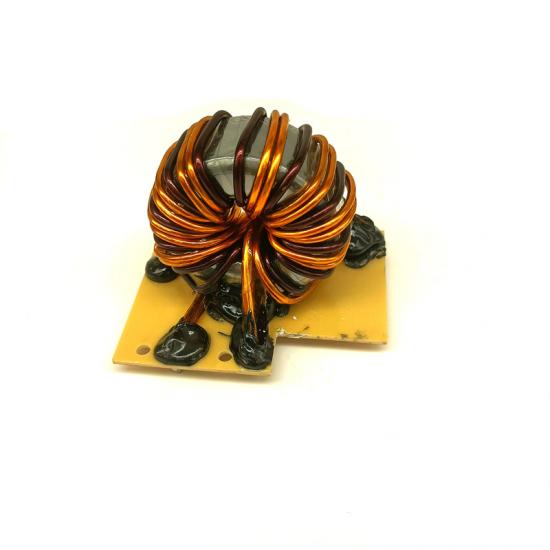

Magnetic Ferrite Core Welder Transformer Toroid Core Transformer for Welding machine

Magnetic Ferrite Core Welder Transformer Toroid Core Transformer for Welding machine

High saturate induction reduce volume of transformers, popular in welding machine application.

  • Product Detail

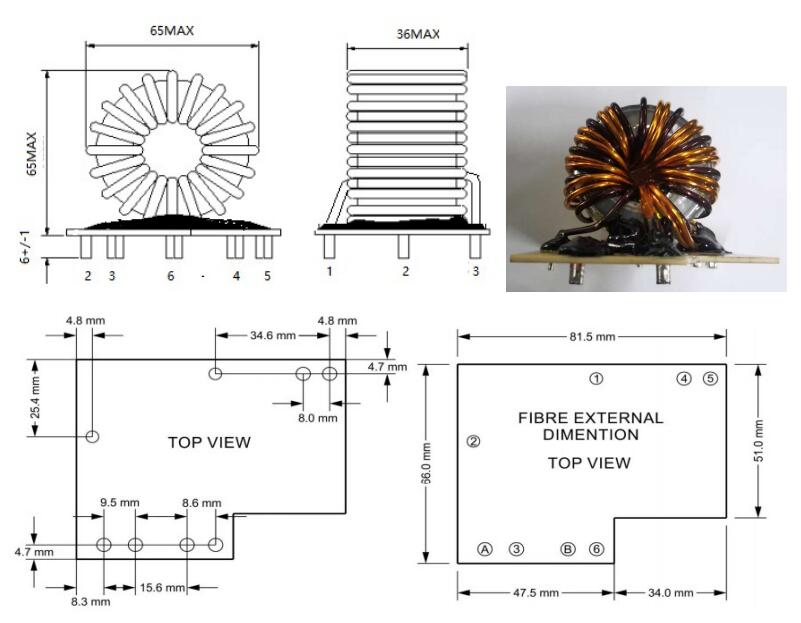

Mechanical Dimension (in mm):

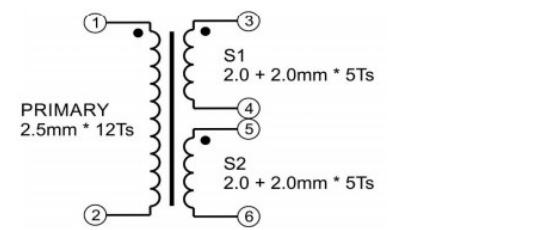

Schematic of Toroidal Transformer:


Electrical Characteristics @ 25°C:

No.

Item

Measured Point

Technical Data

Test Condition & Instrument

1

Inductance

L(1-2)

150uH±20%

WK3260B(10KHZ,0.3V, IDC=0A)

2

Inductance

L(3-4)

210uH±20%

WK3260B(10KHZ,0.3V, IDC=0A)

3

Inductance

L(5-6)

210uH±20%

WK3260B(10KHZ,0.3V, IDC=0A)

4

DC Resistance

DCR(1-2)

10mΩ Max

WK3260 @ 20°C

5

DC Resistance

DCR(3-4)

5mΩ Max

WK3260 @ 20°C

6

DC Resistance

DCR(5-6)

5mΩ Max

WK3260 @ 20°C

7

HI-POT

Coil-Core

500VDC

CS2670D


Material List:

No.

Item

Material

1

Ferrite Core

T502525 PC44

2

Wire

Copper clad Aluminium wire 2.5mm &2.0mm

3

Epoxy

3300A/B

4

PCB

F4 Epoxy board 2.0mm

5

Film

Polyimide film



Main Application:

  • Inverter welding machines
  • X-Ray and laser source power supplies
  • Communication power supplies
  • High frequency heating systems
  •  Electrolytic and plating power supplies





As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about  HF Power Transformer quickly!
