Inverter Transformer Core

HF Power Transformer

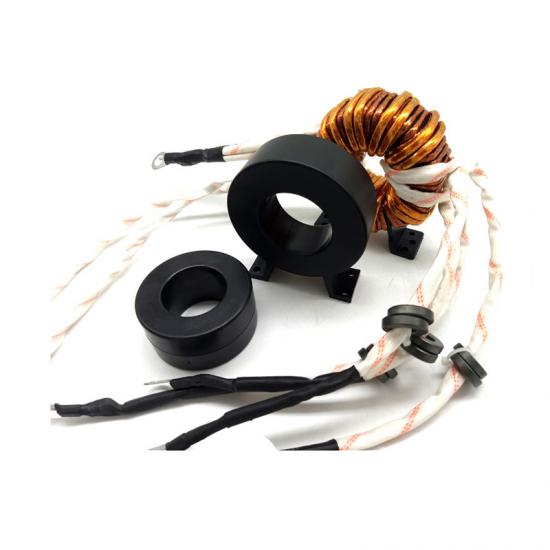

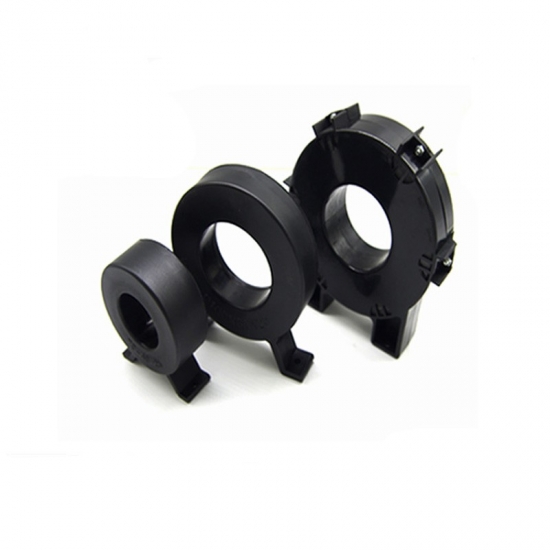

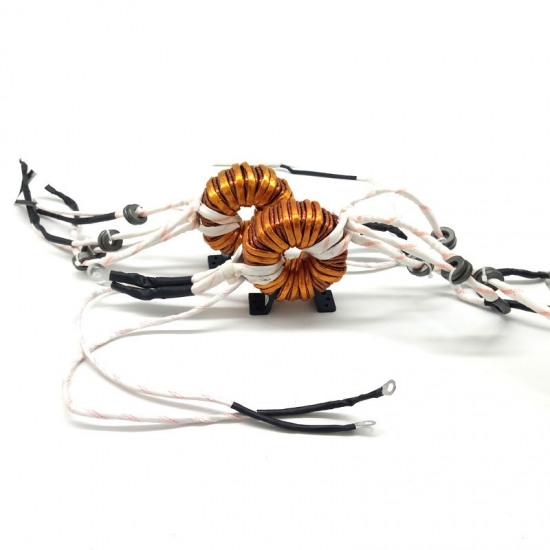

Nanocrystalline Core for HF Power Transformer

Nanocrystalline Core for HF Power Transformer

High saturate induction reduce volume of transformers, popular in inverter power application.

  • Product Detail

Key Properties:

  • High saturate induction reduce volume of transformers
  • High permeability and low coercivity improve efficiency
  • lower exciting power and reduce copper loss
  • Low core loss reduce temperature rise of transformers
  • Excellent thermal stability with the serving temperature of -55°C-130°C for long time
  • LOWEST  CORE  LOSS :P <6W/Kg @ 20KHz,0.5T , P<9W/Kg @ 20KHz, 1T, P<5W/Kg @ 35KHz,0.5T, P<14W/Kg @ 35KHz,1T
  •  High Bs =1.4T ,  low Br <10mT,  Low Hc <1A/m , u=10000


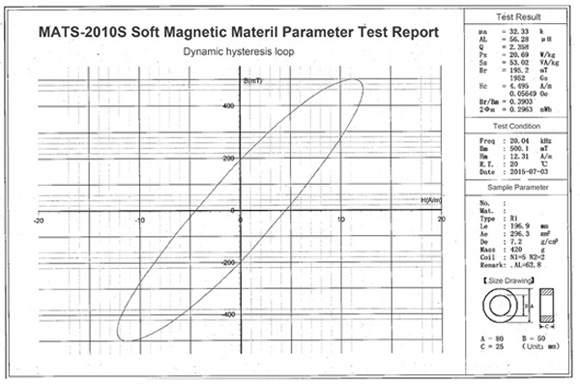

Basic Parameter

Nanocrystalline Core

Ferrite Core

Saturation Magnetostriction Induction Bs(T)

1.25

0.5

Residual Magnetic Field Density Br (T) (20KHz)

<0.20

0.2

Core Losse (20KHz, 0.2T) (W/kg)

<3.4

7.5

Core Losse (20KHz, 0.5T) (W/kg)

<35

Can not be used

Core Losse (20KHz, 0.3T) (W/kg)

<40

Can not be used

Permeability (20KHz) (Ge//Oe)

>2x104

2x103

Coercive Force (A/m)

<1.60

6

Saturated Magnetostrictive Coefficient λs

<2x10-6

4x10-6

Resisitivity (µΩcm)

80

1X106

Curie Temperature (°C)

570

<200

Occupation efficiency

>0.70

---


inverter tranformer cores


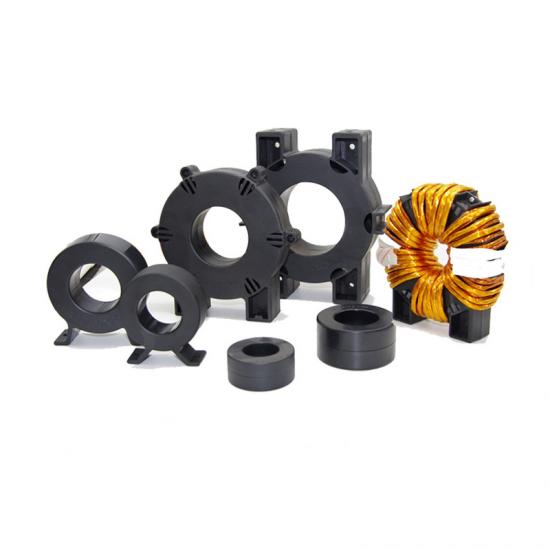

Product Description:

Our Nanocrystalline core is widely used for High Frequency Power Transformers in Welding Machine, Solar Inverter.

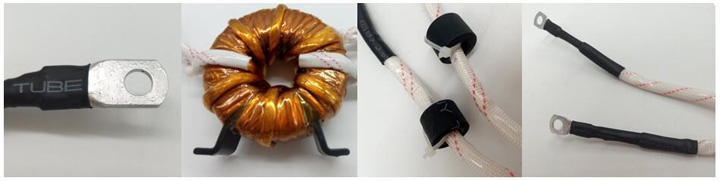

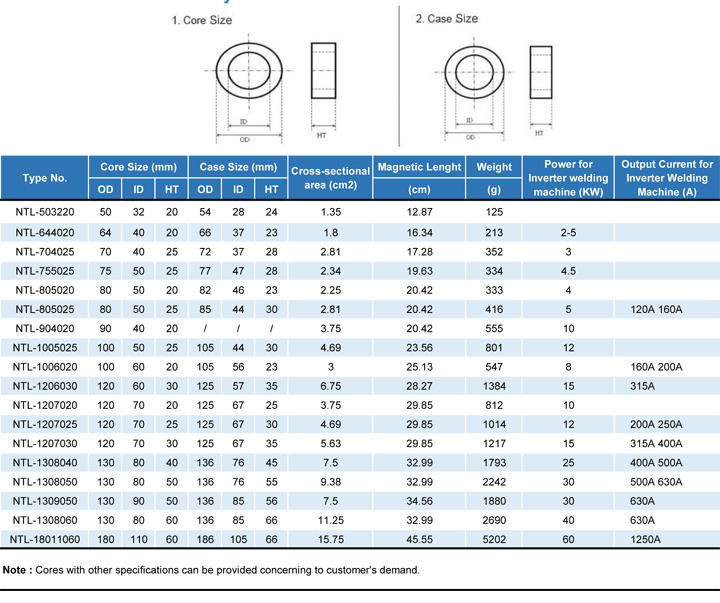

Standard Nanocrystalline Core for HF power Transformer Product list:

Nnaocrystalline Core for HF Power Transformer

Download here.

In meantime, customized HF Transformer design is supported based on details:

Nanocrystalline Core for HF Power Transformer



Main Application:

  • Inverter welding machines
  • X-Ray and laser source power supplies
  • Communication power supplies
  • High frequency heating systems
  •  Electrolytic and plating power supplies



As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Nanocrystalline Core for HF Power Transformer quickly!


Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
