High Power Density PCB Planar Transforemr for European New Energy Storage & Vehicle Charging Stations

High Power Density PCB Planar Transforemr for European New Energy Storage & Vehicle Charging Stations

Ultra compact flat structure design PCB planar Transformer support high voltage & high power application, widly used in Automobile, electric & hybrid vehicles, charging station & New energy storage products.

  • Product Detail

With the successful development of a planar core, a planar transformer design was realized. The planar transformer requires a magnetic core, and the winding is a planar structure, usually chopped into PCB windings to achieve high frequency and low shape. In the market, the Planar transformers power from 5W to 20KW, frequency from 20KHz to 2MHz, efficiency up to 98%.



Key priority

1. high current density. The wires of planar transformer are planar conductors, so the current density is high.

2. high efficiency. Efficiency as high as 98%~99%.

3. low leakage inductance. About 0.2% of the primary inductance.

4. good heat conduction. Short hot aisle distance, low temperature rise.

5. low EMI radiation. Excellent core shielding keep radiation low.

6. small size. Use small magnetic core, reduce volume accordingly.

7. The parameter repeatabiltiy is good. Fixed winding structure, easy to pre-process, reduce stable parameters.

8. wide operating frequency range. From 50KHz to 2MHz.

9. wide operating temperature range. Form -40℃~130℃.

10. Good insulation. The planar transformer is composed of conductive circuits and insulating sheets overlapping each other, which ensure up to 4KV insulation between winding, primary-secondary & secondary-secondary.

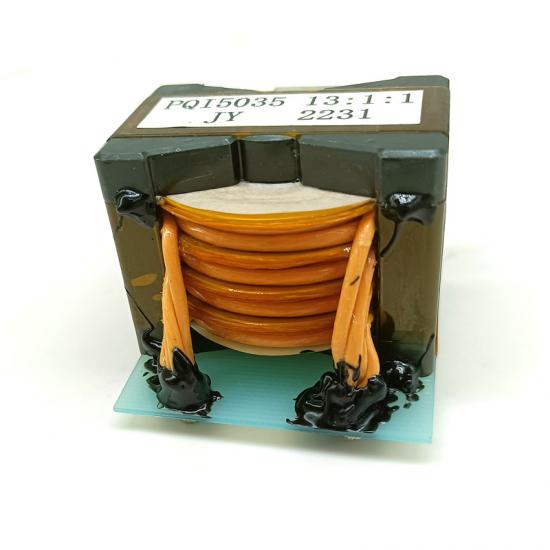

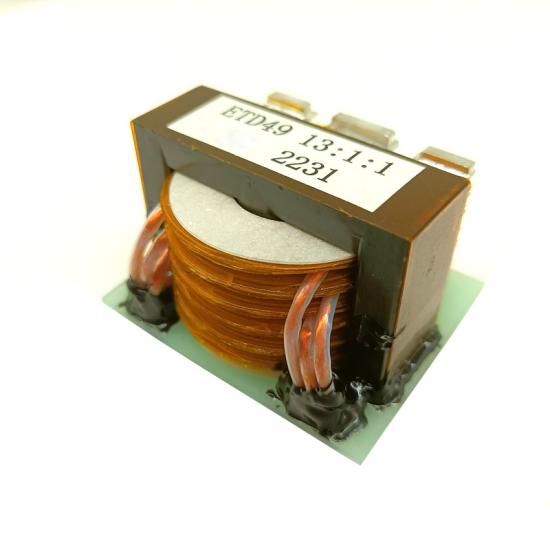

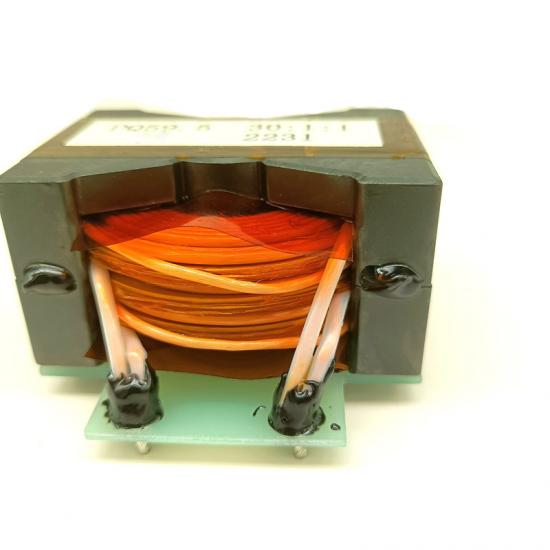

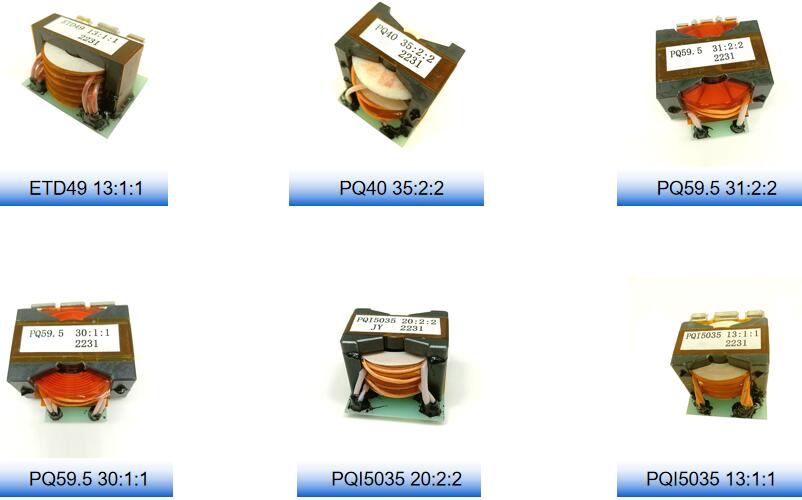

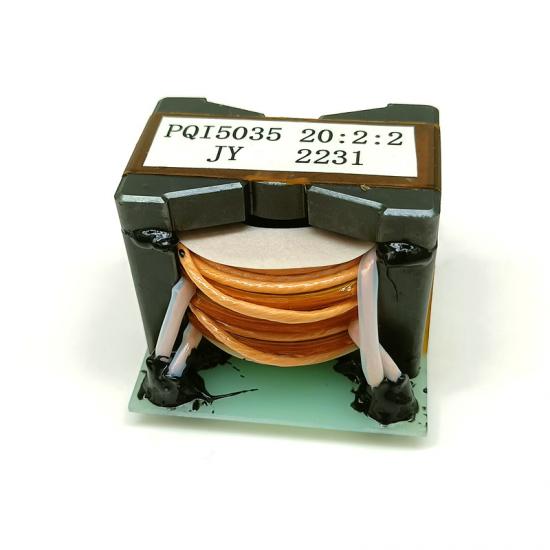

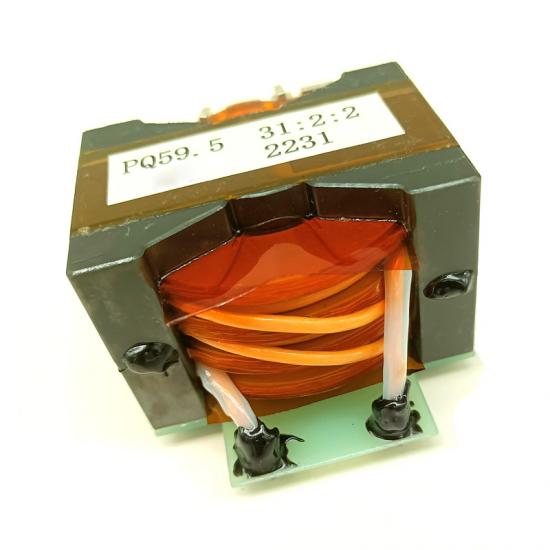

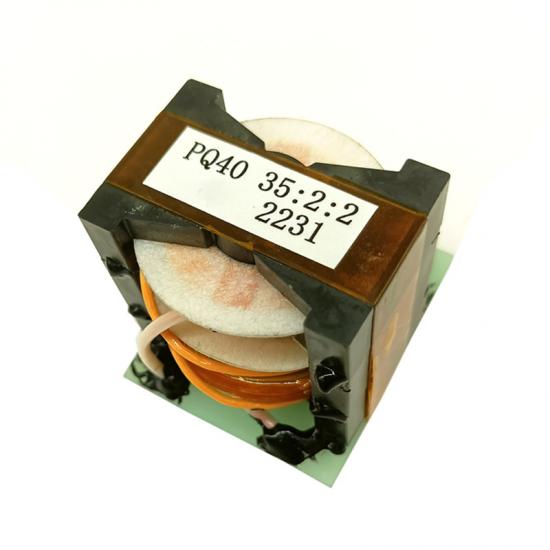

Related Series show:


Customized Planar-Transformer Design Supportted:

Optimal power range: 500W - 50kW

Maximum rated current: 200A Max

Optimum frequency range: 60–500 KHz

Installation mode: perforated installation (THT)

Topology: full bridge, full bridge (ZVS), half bridge, half bridge (ZVS), push-pull, resonance, flyback



Advantages:

ultra compact flat structure, high power density, less AC loss, repeatable leakage inductance and good heat conduction performance



Application field:

• Automobile, electric & hybrid vehicles, charging station

• New energy storage products

• Welding, laser & test equipment

• DC-DC converter

• AC-DC resonant design

• Battery management system

• Switching power supply

• Distributed isolated power supply

Planar Transformer Application






As an leading manufacturer for new energy storage products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Planar Transformer quickly!
