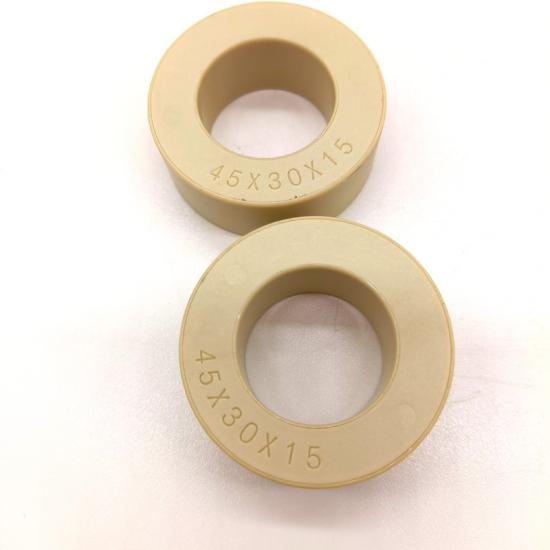

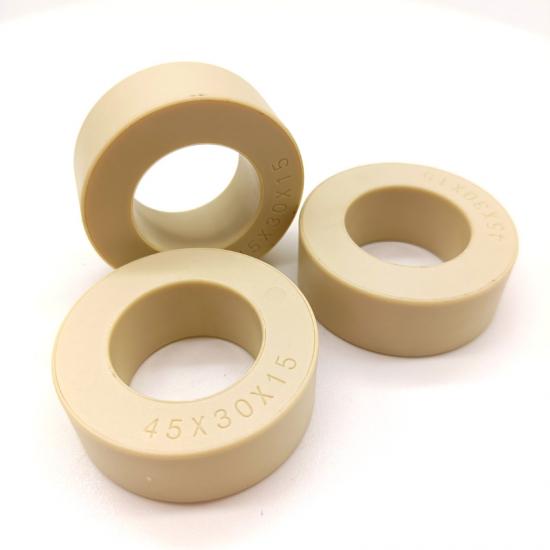

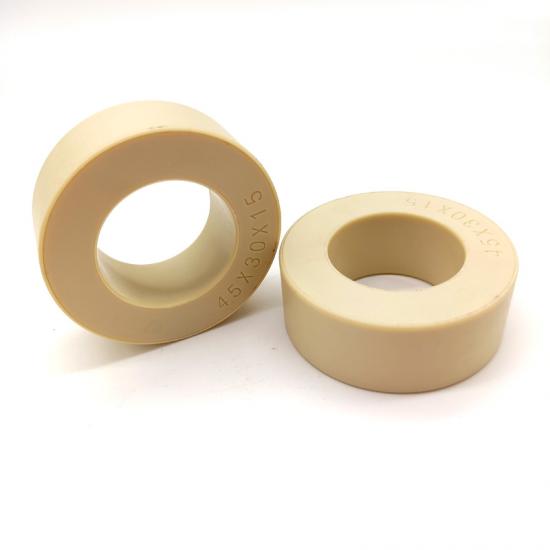

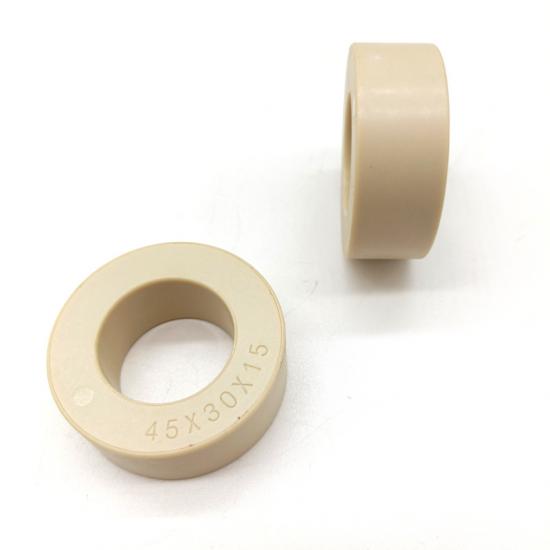

Plastic Casing VITROPERM 550HF Material L2045-V427 Toroidal Core For Common Mode Choke

Nanocrystalline cores for common mode chokes AL= 18.0 ~31.2uH @ 10KHz, ≤50mV

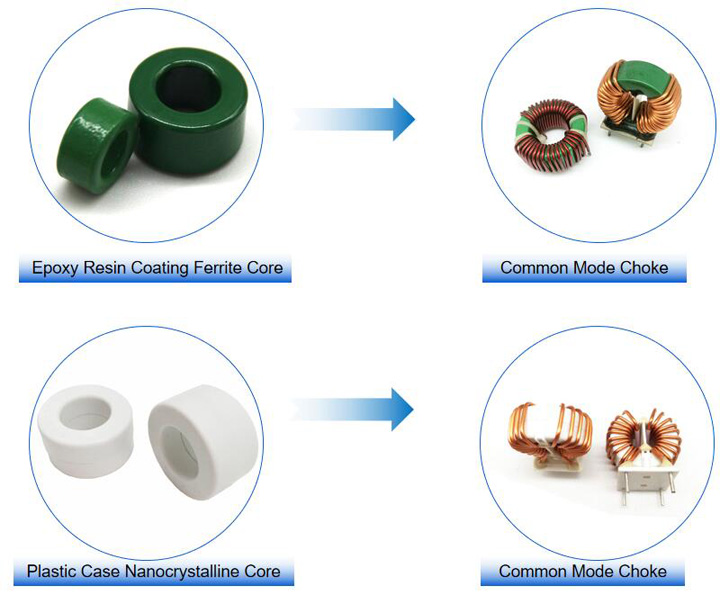

Nanocrystalline cores for common mode chokes, core with high permeability μi (200KHz) and high L impedance Z,which popular in home application such like wind generator, frequency converters.
