Split Core Current Transformer

Outdoor Bolt Fastening Type

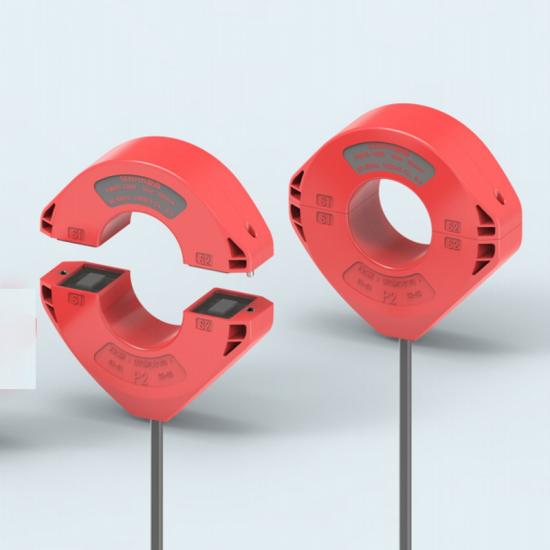

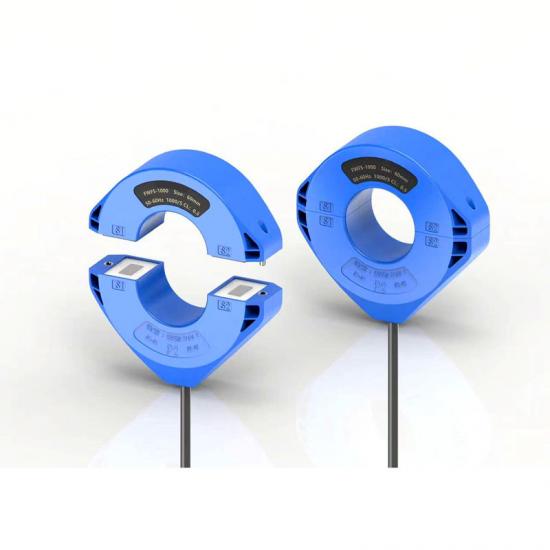

IP67 Waterproof Current Transformer for Outdoor Application

IP67 Waterproof Current Transformer for Outdoor Application

IP67, excellent waterproof performance, works well even under water condition 3 days.

  • Product Detail

Key Properties:

  • The product meets the standard: GB200840-0.66/3KV
  • Input current range: 100A-600A
  • Ambient temperature: -15~+40
  • Flame-retardant characteristics: in line with UL94-N0
  • Humidity: 80%
  • Waterproof rating: IP67


 Parameters:

Electrical Parameters

 Mechanical parameters

Use standard

GB/T20840.1.2

shell

PA/PC flame retardant grade 94-V0

Voltage level

0.4/0.66/0.69/0.72kv

Core material

Silicon steel, nanocrystalline, ferrite iron

Review accuracy

5VA/2.5VA

Internal structure

Waterproof seal ring/puncture needle

Accuracy class

0.5S, 0.5, 1

Heatstroke prevention grade

IP67,IP68

Rated frequency

50/60Hz

Applicable environment

-40~70



Specification:

Item

Rated Input

Rated Output

Accuracy

Sizemm)

A)

(mA/V)

Dia.

A

B

C

D

CTHW1-36

0-400

0-5A
0~1V

0.5
1.0

36

118

129

55

40

CTHW1-60

0-800A

60

152

161

60

40

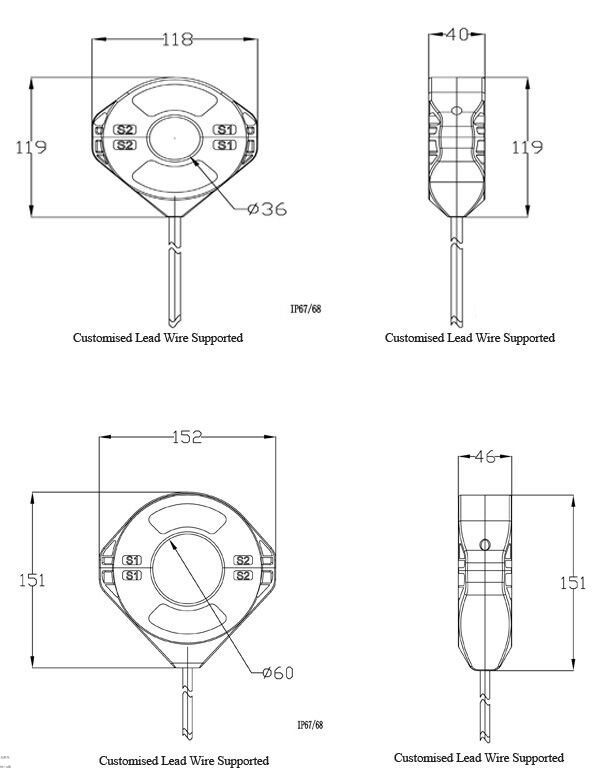

Drawing:




Main Application:

Electrical fire monitoring system, power supply monitoring system for fire fighting equipment, smart power system, smart grid, station area transformation, environmental protection extra testing, small current grounding system, relay protection, motor protection system.
