NT-G & HDU Series Nanocrystalline core for common mode choke

NT-G & HDU Series Nanocrystalline core for common mode choke

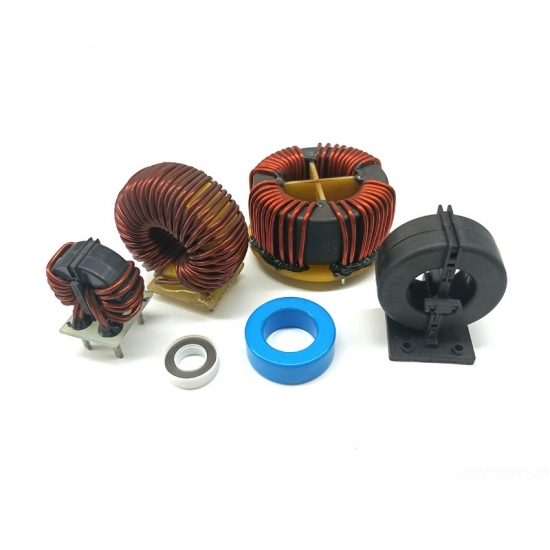

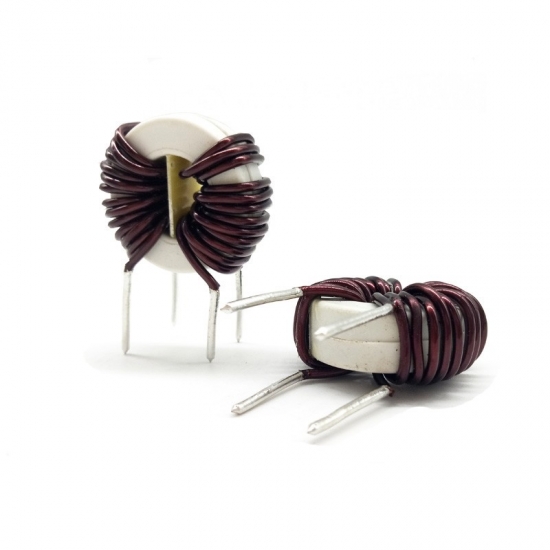

Nanocrystalline cores for common mode chokes, core with high permeability μi (200KHz) and high L impedance Z,which popular in home application such like wind generator, frequency converters.

  • Product Detail

Key Properties:

  • At high frequency range, the naonocrystalline strips with High permeability µi (200KHZ), high L and impedance Z
  • High saturation flux density (1.2T) of nanocrystalline material
  • Excelletn temperature characteristics & High curie temperature (580 °C)
  • Low remanent flux density Br with DC-tolerance

Nanocrystalline

Mn-Zn ferrite

Initial Permeability @ 100KHz µr'

20°C

16000

5300

100°C

16300

7000

Impedance permeability @ 100KHz µr'

20°C

25700

5300

100°C

26300

7000

Saturation magnetic flux density Bs* (T)

20°C

1.35

0.44

100°C

1.3

0.27

Residual magnetic flux density Br* (T)

20°C

0.81

0.1

100°C

0.73

0.06

Corrective Force Hc* (A/m)

20°C

1.3

8

100°C

1.4

4.9

Curie Temperature Tc (°C)

570

150

Saturation magnetostriction λs(x10-6)

2.3

-1.1

Electrical resistivity ρ (µΩcm)

1.1

10x106

Density d(kg/m3)

7.4x103

4.85x103

* DC magnetic properties @ 800A/m


Product Specification:

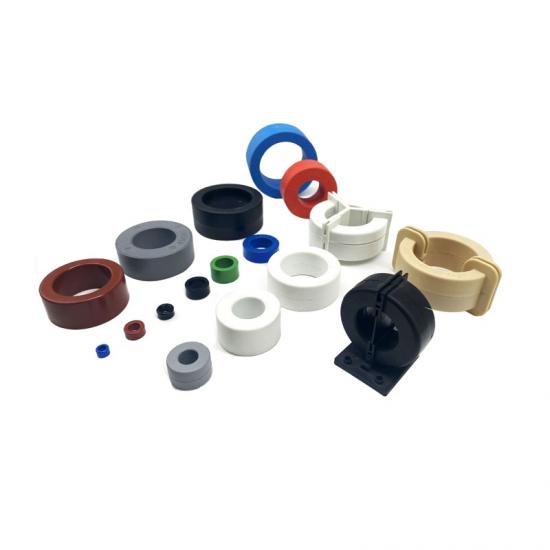

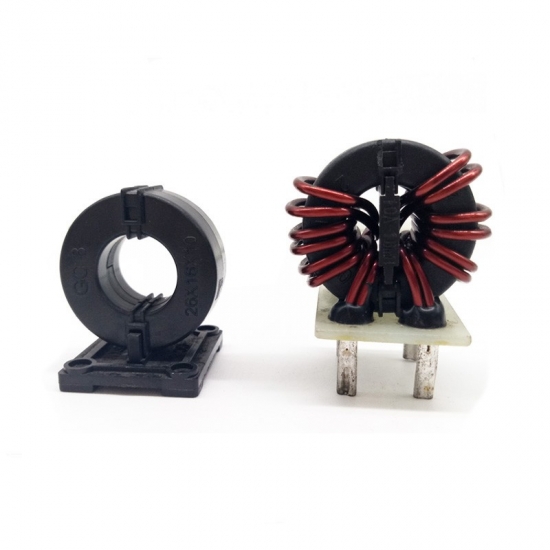

Epoxy coated Nanocrystalline core & plastic case nanocrystalline cores for Common Mode Choke making.

Common Standard:

common mode choke nanocrystalline core


Product list download.

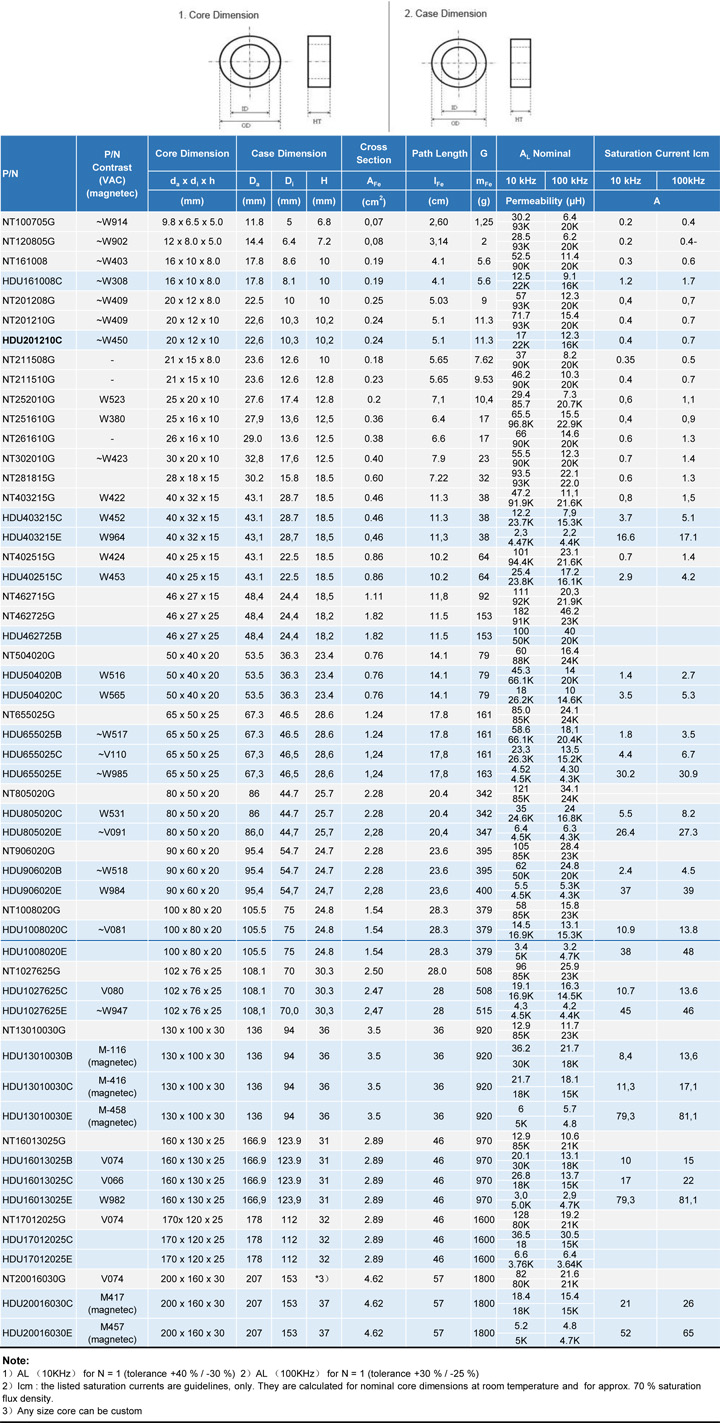

We design & produce goods based on clients' specifications & drawing:

1.Bare core size, Size finished

2.Al requirement @ different frequency



Main Application:

Our nanocrystalline core CMC popular in home electronic application, such as: washing machine, AC, Air Purifiler, Coffer Maker, Bread Maker, etc.





As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about common mode choke core quickly!


Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
Split Core Ct
Split Core Current Transformer

Split-core current transformers are designed to meet the growing demand of installation into existing networks. Our Split Core (open-able) CTs can be a savings overall in the labor cost savings.Simply clip these around the wires being read. Secure them in place with a zip tie, without disconnecting cables or busbar circuits.

Split Core Ct
Clamp On Sensor 500A : 1A Ring Core Split Core Current Transformer

Split Core Current Transformer is suitable for indoor units with rated voltage of 10KV and below. It's for circuit control, measurement, line transformation measurement and protection.

Residual current transformer
Vertical Type Leakage Current Transformer RCT Series Residual current transformer

RCT Series leakage current transformer is used for the collection of residual current, and can be used with electrical fire monitoring devices, motor protection devices and residual current relays.The secondary output of this product is 0~0.5mA or 0~1V. There are round hole type and square hole type for users to choose according to their needs.

Toroidal Transformer
Magnetic Ferrite Core Welder Transformer Toroid Core Transformer for Welding machine

High saturate induction reduce volume of transformers, popular in welding machine application.

amcc
Fe-Base Amorphous C Cutting Core - (AMCC)

High Saturation Flux Density amorphous C Cutting Core, standard AMCC series and OEM size design supportted, popular in PFC Choke coils.

inverter transformer
High Frequency Nanocrystalline Toroidal Core for HF Power Transformer

High saturate induction reduce volume of transformers, popular in inverter power application.

Copper Wire Winding Flat Wire Transformer
Copper Wire Winding Flat Wire Transformer

Lower DC resistance, extremely small capacitance distribution, excellent heat dissipation, perfect replacement of common CMC, which is popular used in power line solutions.

Instrument Current Transformer Core
Medium Voltage Transformer Ring Magnet Instrument Current Transformer Nanocrystalline Core

High accuracy nanocrystalline cores, for low voltage instrument current transformer, medium voltage instrument current transformer, high voltage instrument current transformer in industry application.
