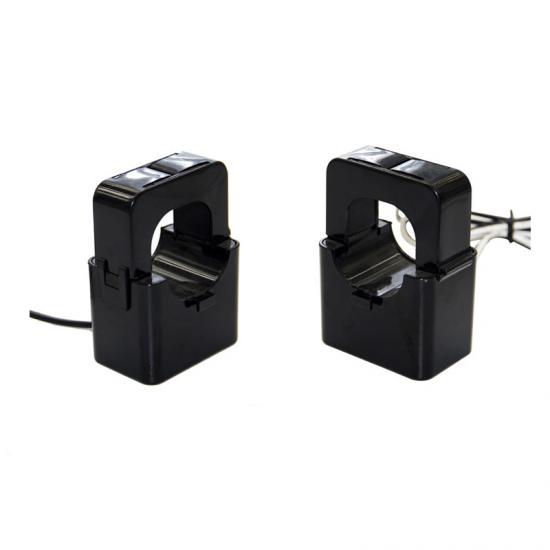

Split Core Current Transformer

Split-core current transformers are designed to meet the growing demand of installation into existing networks. Our Split Core (open-able) CTs can be a savings overall in the labor cost savings.Simply clip these around the wires being read. Secure them in place with a zip tie, without disconnecting cables or busbar circuits.

  • Product Detail

Key Properties:

  • Inherit the simple structure of the traditional C cores
  • Clamp-on core design, safer, easier installation, portable, don’t need to cut of the grid-power when adjust the inductance.
  • Comparing other materials, with high accuracy, due to nanocrystalline high permeability.
  • Energy conservation & environment protection, huge potential market.

Typical Specification

Working Frequency

50 ~ 2000 Hz

Rated Input

5 ~ 630 A

Testing Range

10% In ~ 130% In

Rated Output

0.333V(AC); 0~500 mA

Ratio Turns Error

≤± 1.0%

Phase Error

≤±60

Dielectric Strength

2.5KV; 1mA; 1min

Insulation Resistance

DC500V; 100 MΩ min

Case Material

PA (UL flame retardant rating 94V-O)

Stand Material

PBT

Core Material

Ferrite Core; Silicon Steel Core(CRGO); Nickel alloy; Nanocrystalline Core

Inner Structure

Clamp Design

Application

Cable Tie Fixed

Working Temperature

-25 ~ 75°C

Environmental Humidity

≤ 85%

Output Connection

To be defined

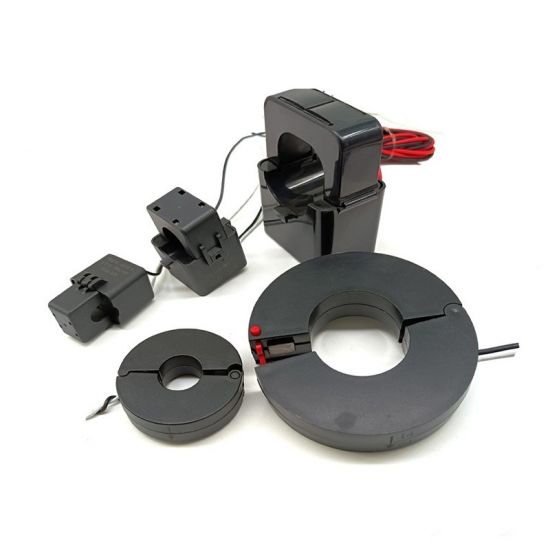

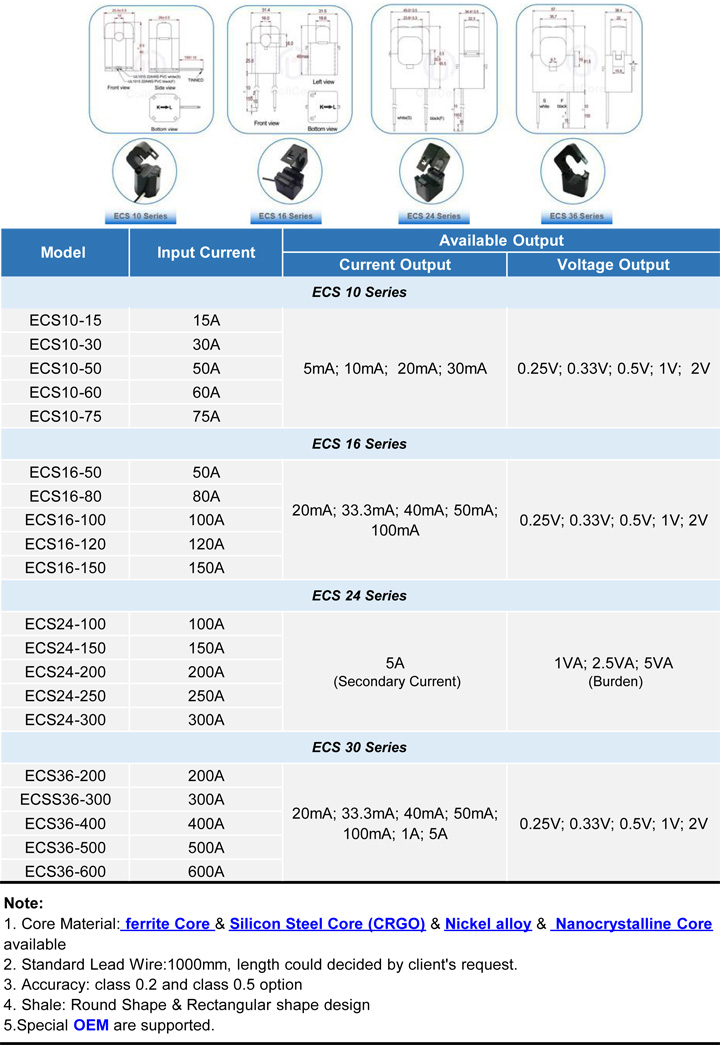

Product Specification:

We supply including Nanocrystalline Cut Core and Split current transformers.

Regarding split core current transformers, flexible shape design are supported. Split Core Current Transformer Product list:

 download here.

To confirm your products details, please advise following information:

1. Mini Hole Size

2. Current Input

3. Current Output / Voltage Output

4. Accuracy

5. Lead Wire Length



Main Application:

Our Split-core current transformer can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. Which is widely used for:

  • Current Measurement
  • Electrical loading monitoring
  •  Energy and sub-metering products
  • Network equipment
  • Instruments and sensors
  • Control System
  • Go GREEN initiatives


As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Split Core Current Transformer quickly!




Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
Residual current transformer
Vertical Type Leakage Current Transformer RCT Series Residual current transformer

RCT Series leakage current transformer is used for the collection of residual current, and can be used with electrical fire monitoring devices, motor protection devices and residual current relays.The secondary output of this product is 0~0.5mA or 0~1V. There are round hole type and square hole type for users to choose according to their needs.

Split Core Ct

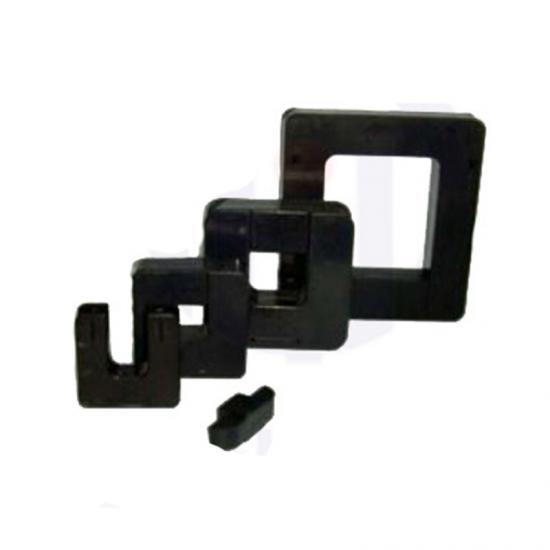

Clamp On Type Square Split Core Current Transformer

Split Core Current Transformer is suitable for indoor units with rated voltage of 10KV and below. It's for circuit control, measurement, line transformation measurement and protection.

Split Core Ct

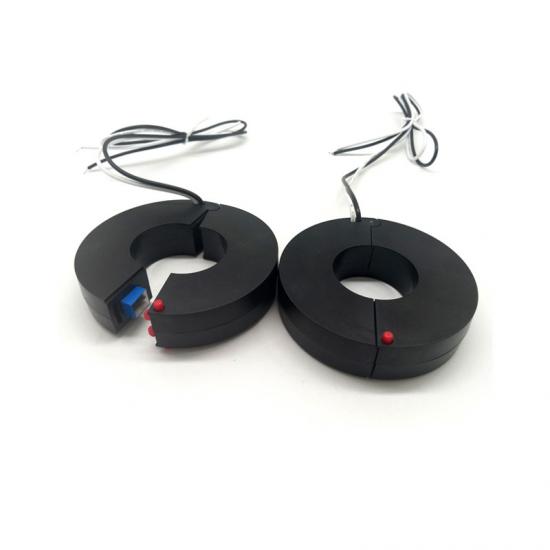

Clamp On Sensor 500A : 1A Ring Core Split Core Current Transformer

Split Core Current Transformer is suitable for indoor units with rated voltage of 10KV and below. It's for circuit control, measurement, line transformation measurement and protection.

Hall Sensor
Open Loop Split Core Hall Sensor Hall Effect DC/AC Current Sensor

An open loop device hall effect current Sensor based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provided to measure DC, AC and pulse current and another arbitrary waveform current.

Hall Sensor
Open loop current transducer DC+5V Hall Sensor

THK600 EKA5S2  Open loop current transducer using the hall effect for the electronic measurement of current: DC, AC, Pulsed, with galvanic separation between primary circuit and secondary circuit, which supply voltage DC+5.0V.

audio torodial core
Toroidal Soft Magnetic Amorphous Core for Car Audio

High saturation magnetic induction (Bs), popular used in vehicle audio application.

inverter transformer
High Frequency Pulse Power Transformer Core For Welder

High saturate induction reduce volume of transformers, popular in inverter power application.

Instrument Current Transformer Core
Magnetic Nanocrystalline Toroidal Core Current Transformer Coil For Instrumentation And Control

High accuracy nanocrystalline cores, for low voltage instrument current transformer, medium voltage instrument current transformer, high voltage instrument current transformer in industry application.
