Split Core Current Transformer

Indoor Clamp-on Type

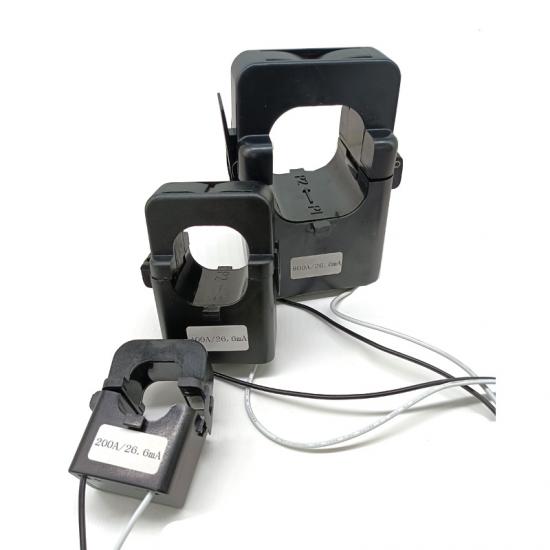

Clamp On Type Square Split Core Current Transformer

Clamp On Type Square Split Core Current Transformer

Split Core Current Transformer is suitable for indoor units with rated voltage of 10KV and below. It's for circuit control, measurement, line transformation measurement and protection.

  • Product Detail

Structure:

Coilcore's split core current transformer use a high-strength PVC casing and is fully casted with a busbar structure.

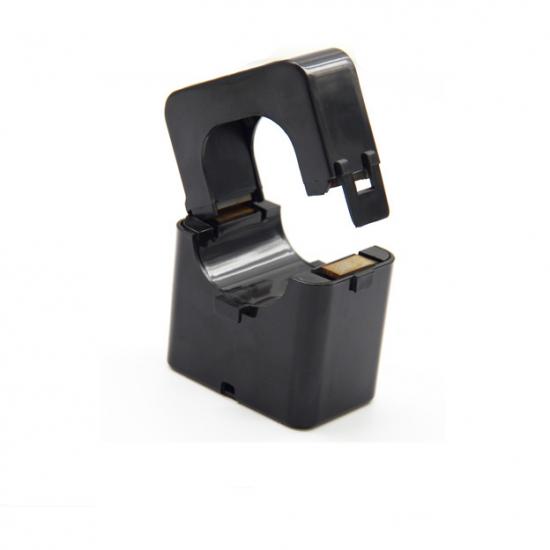

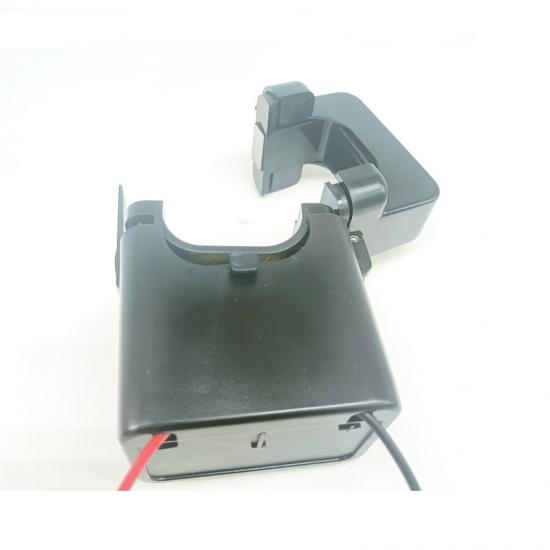

It's an open-closed structure design, that can directly stuck on the cables without existent cables cutting off.

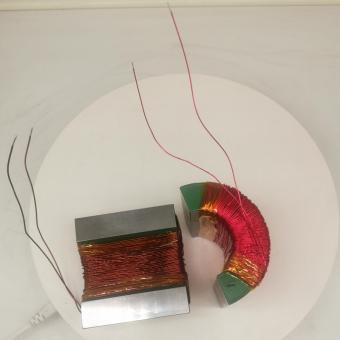

Transformer core made of high- quality Ferrite Core, CRGO Core, Nanocrystalline Core, Permalloy core, based on the transformer's accuracy request.

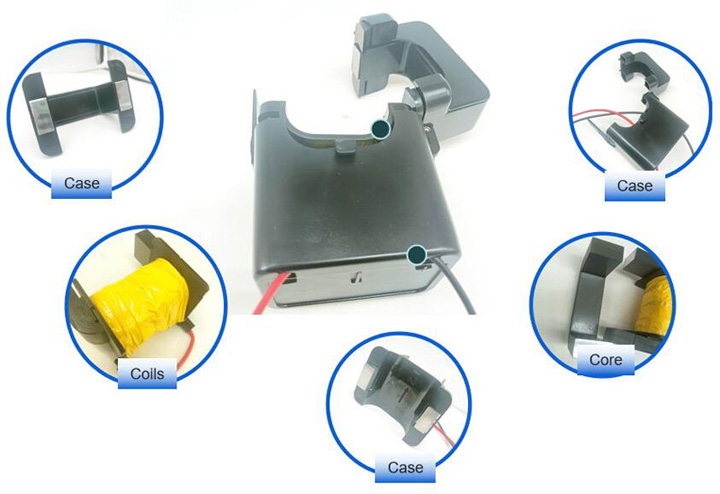

 Split Core Current Transformer Structure
Application range:

  • The altitude of the installation site does not exceed 3000m;
  • Ambient temperature: -25 - +40 ° C;
  • Can be worn once cable outer diameter: φ8—φ240mm
  • Input: 0~60KA
  • Output: 0 ~ 500mA 1A or 5A 5VDC or 4 ~ 20MA (customer defined)

There are no pollution & erosive & explosive media in the atmosphere that seriously affect the insulation performance of the transformer.


Typical Specification

Working Frequency

50 ~ 2000 Hz

Rated Input

5 ~ 630 A

Testing Range

10% In ~ 130% In

Rated Output

0.333V(AC); 0~500 mA

Ratio Turns Error

≤± 1.0%

Phase Error

≤±60

Dielectric Strength

2.5KV; 1mA; 1min

Insulation Resistance

DC500V; 100 MΩ min

Case Material

PA (UL flame retardant rating 94V-O)

Stand Material

PBT

Core Material

Ferrite Core; Silicon Steel Core(CRGO); Nickel alloy; Nanocrystalline Core

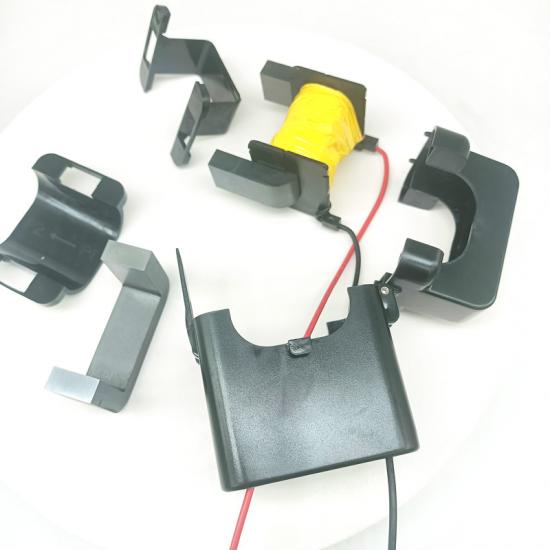

Inner Structure

Clamp Design

Application

Cable Tie Fixed

Working Temperature

-25 ~ 75°C

Environmental Humidity

≤ 85%

Output Connection

To be defined


Customized design based on below product  details:

1. Mini Inner Hole Size

2. Current Input

3. Current Output / Voltage Output

4. Accuracy

5. Lead Wire Length


Main Application:

Split-core current transformer can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.

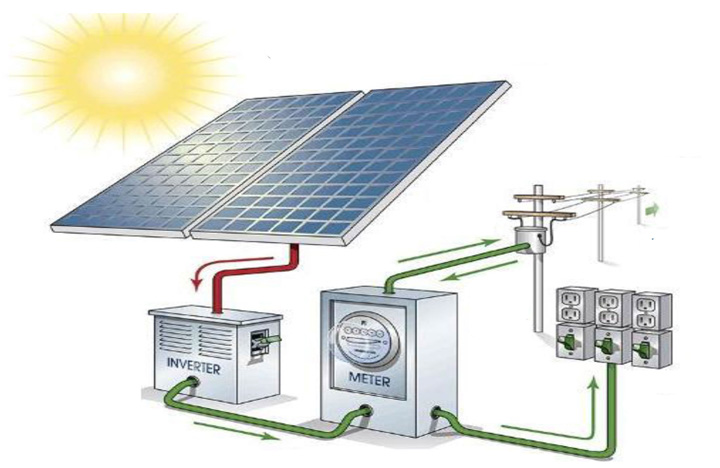

Split Core Current Transformer Application



As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Split Core Current Transformer quickly!
