Split Core Current Transformer

Indoor Clamp-on Type

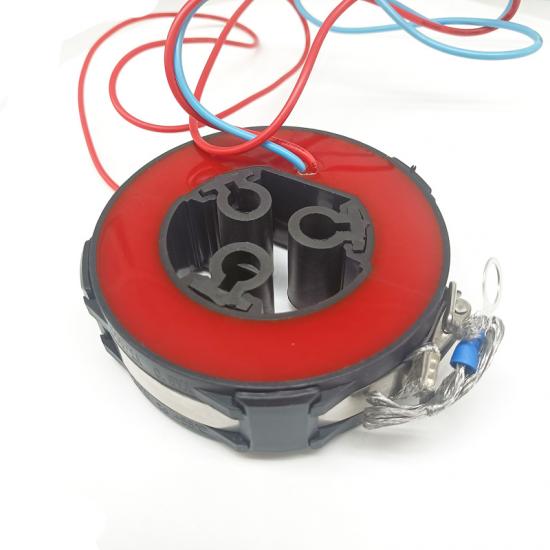

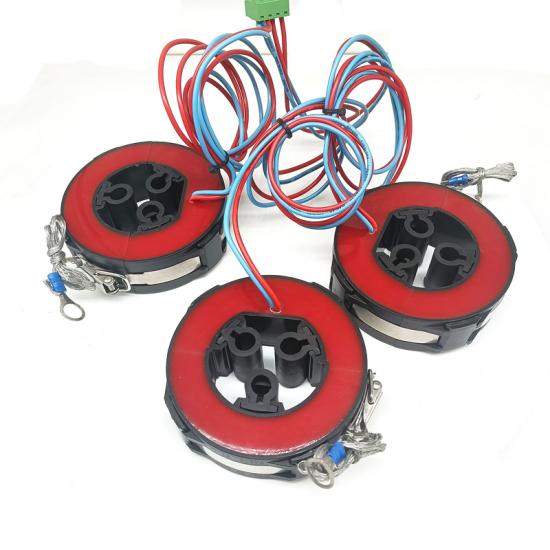

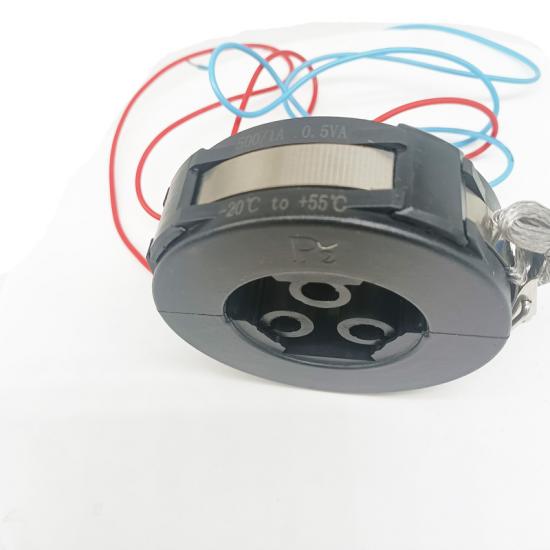

Clamp On Sensor 500A : 1A Ring Core Split Core Current Transformer

Clamp On Sensor 500A : 1A Ring Core Split Core Current Transformer

Split Core Current Transformer is suitable for indoor units with rated voltage of 10KV and below. It's for circuit control, measurement, line transformation measurement and protection.

  • Product Detail

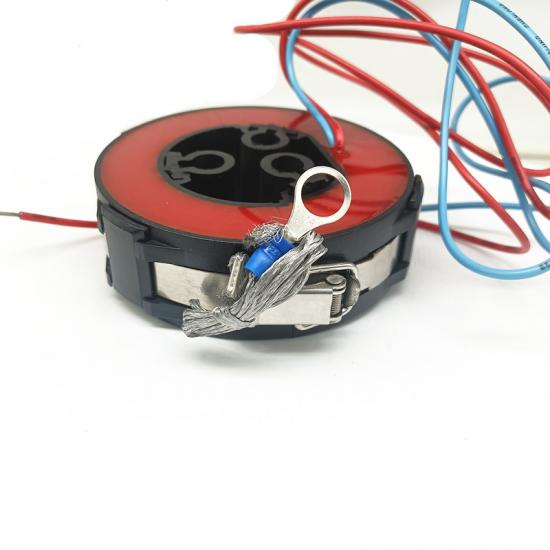

Structure:

LMZK Series Split Core Current Transformer is suitable for current measurement and microprocessor protection of distribution equipment of below 10KV or 35KV cable line in AC power system. It is widely used not only incompact fully insulated Ring Main Unit , but also in combined substation and cable take-off boxes, thanks to its features of small volume, light weight, open feasibility and convenient installment. It is very convenient that this CT can be directly installed at connected output and input cables.


Electronic Parameter:

No.

Item

Specification

1

Rated Input Current

AC500A

2

Rated Output Current

AC 1A

3

Load

0.5VA

4

Rated Accuracy Error

+/- 0.5%

5

Linear Range

5%In ~120%In

6

Frequency

50Hz ~60Hz

7

Working Temperature Range

-20°C~+70°C

8

Terminal Cable

2*1.5mm2+1*2.5mm2

9

Dielectric Withstanding Voltage

3000V/0.3mA/3S

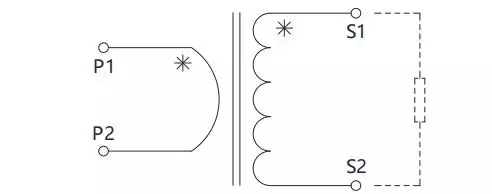

Winding Diagram:


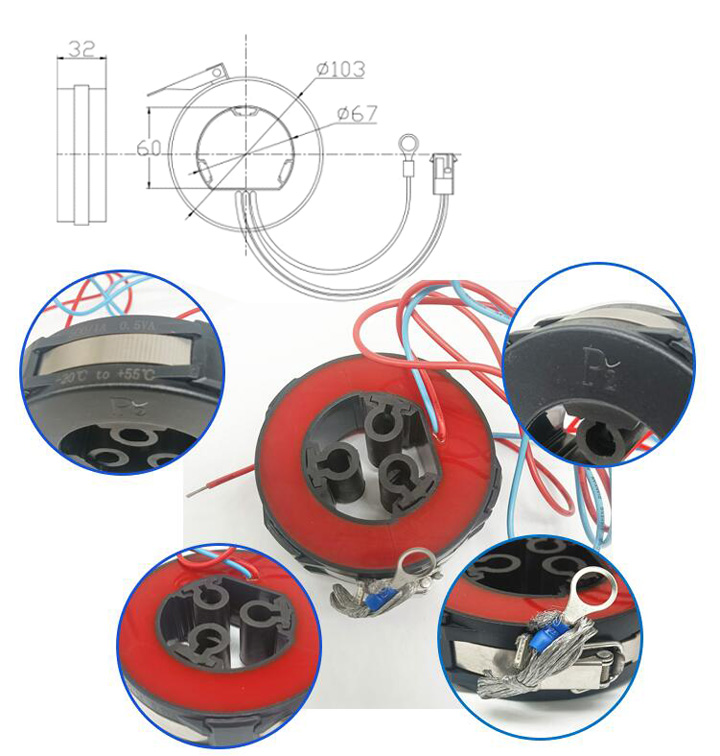

Specification:



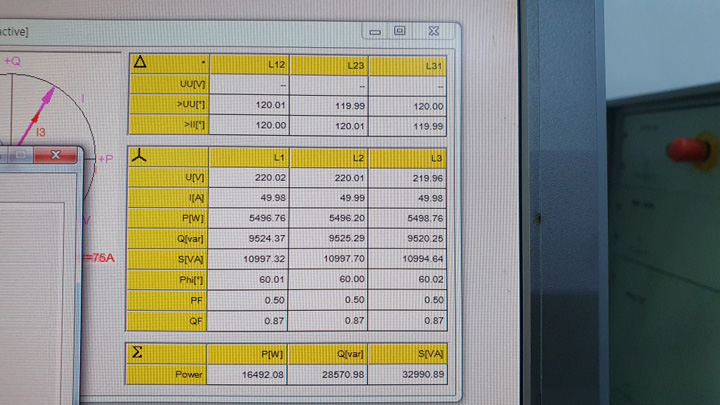

Main Application:

Split-core current transformer can be used for measuring, monitoring of low current in outdoor application:

split core current transformer measuring




As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Split Core Current Transformer quickly!
