Open Loop Split Core Hall Sensor Hall Effect DC/AC Current Sensor

Open Loop Split Core Hall Sensor Hall Effect DC/AC Current Sensor

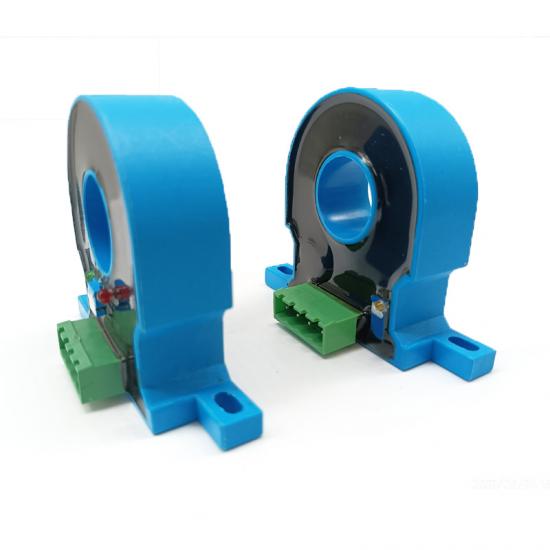

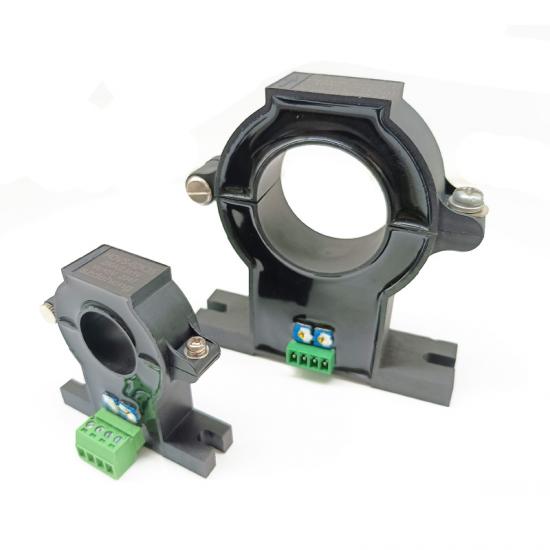

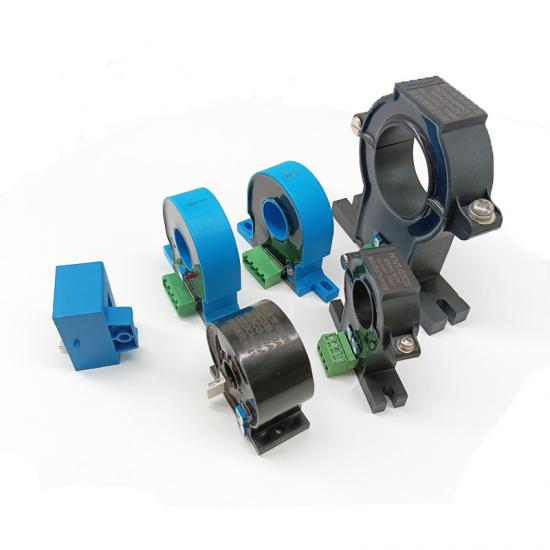

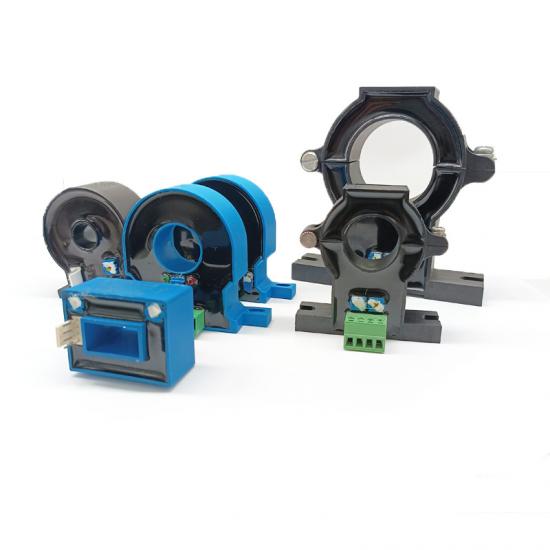

An open loop device hall effect current Sensor based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provided to measure DC, AC and pulse current and another arbitrary waveform current.

  • Product Detail

Key Properties:
  • The first to achieve 0.2-level conversion, accuracy, low-power circuit design, conversion effect more than 99.5%
  • The industry's first five-year warranty, 10 years lifespan, the use of stable as ever.
  • Support 10 times range over-load protection, protection module and post-level equipment security.
  • Imported components & SMT chip Technology, the conversion response time is less than 0.1 second.


Hall Sensor



General parameters:

  • Test frequency: 0~20KHz
  • Corresponding time: ≤10μs
  • Linearity: 1.0%
  • Five Measurements of Insertion Loss
  • Measures DC, AC and pulsed current
  • The primary side current is highly isolated from the secondary side output signal
  • Low power consumption


Item No.

Rated Current

Testing Range

Supply Voltage

Output Voltage

Offset Voltage

Accuracy

Working Temperature

Inner Hole Size

In(A)

Ip(A)

(DC)

Vm(V)

(mV)

Ta=25°C

(°C)

mm

THK01S0-D5

50/100/200/300/400/500/600

InX150%

±15V ±5%

4V±0.05V

≤±40

1.0%

-40~+85

10.5x20.5

THK02S-D5

50/100/200/300/400/500/600

0~±In

+5V ±5%

2.5V±2.0*(In/Ip)

≤±40

1.0%

-40~+85

21

THK02S-D15

50/100/200/300/400/500/600

InX150%

±15V ±5%

±4.0V*(In/Ip)

≤±20

1.0%

-40~+85

21

THK03S-DD5

50/100/200/300/400/500/600

0~±In

+5V~+12V

2.5V±2.0*(In/Ip)

≤±40

1.0%

-40~+85

20


Customized design based on below product  details:

  • Current Input (AC, DC):
  • Current Output / Voltage Output:
  • Turns Ratio:
  • Accuracy:
  • Size request:
  • Inner Hole Diameter:
  • Is it Split core type or Ring type:


Main Application:

Our hall effect sensor can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. Which is widely used for:

Electrical fire monitoring system, power supply monitoring system for fire fighting equipment, smart power system, smart grid, station area transformation, environmental protection extra testing, small current grounding system, relay protection, motor protection system.





As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Open Lope Hall Sensor quickly!
