Current Transformer

Precision Current Transformer

Mini Precision Current Transformer

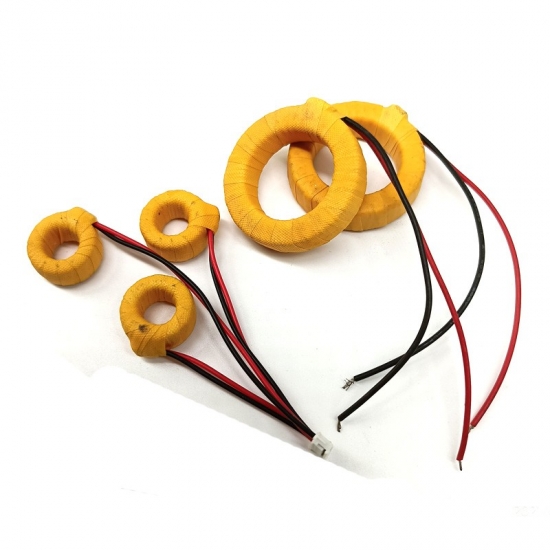

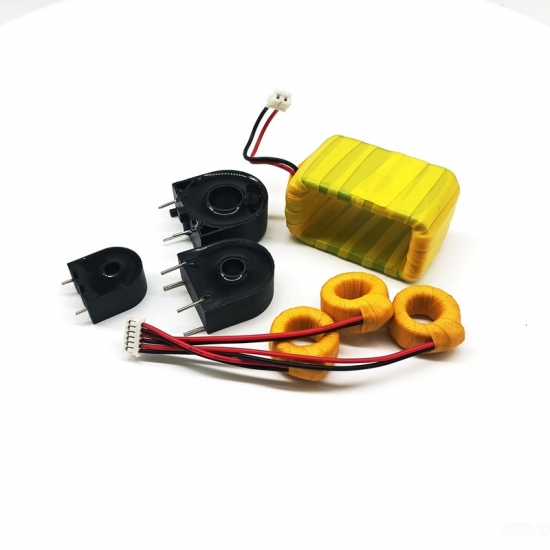

Mini Precision Current Transformer

High precision, wide linearity range for output current, suitable application in electornic energy meter, power transducer, etc.

  • Product Detail

Key Properties:

  • High precision, wide linearity range for output current
  • High potential voltage (4000Vac for 1min)
  • Out-standing stability
  • Low profile elegant looking
  • Directly installed to PCB

Material Parameter

Saturated Induction Density

Bs = 1.2 T

Material Permeability

µo >8x104 Gs/Oe

crystallization temperature

Tx >510

Vickers Hardness

Hv= 880 kg/mm2

Curie Temperature

Tc >570°C

Density

ρ = 7.2 g/cm3

Electrical Resistivity

r = δ ≥130µΩcm

Thickness

29~35µm

Lamination Factor

0.75~0.82

Electrical Specification

      Model
Item

CT01A

CT01B

CT01C

CT01D

Rated Current

5A

20A

60A

200A

10A

40A

120A

Current Ratio

5A/2mA

20A/8mA

60A/24mA

200A/80mA

10A/4mA

40A/16mA

120A/48mA

200A/100mA

Accuracy Class

0.1,0.2,0.5,1.0,3.0,5.0

Rated Frequency

50/60Hz


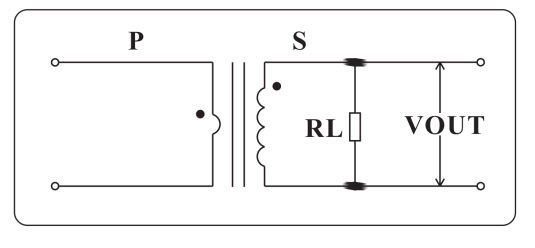

Wire Program


Wire Program


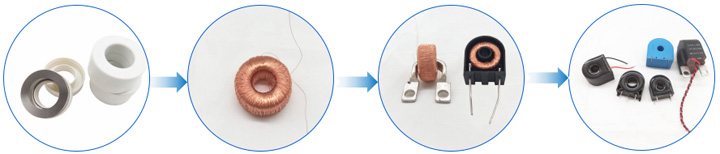

Product Description:

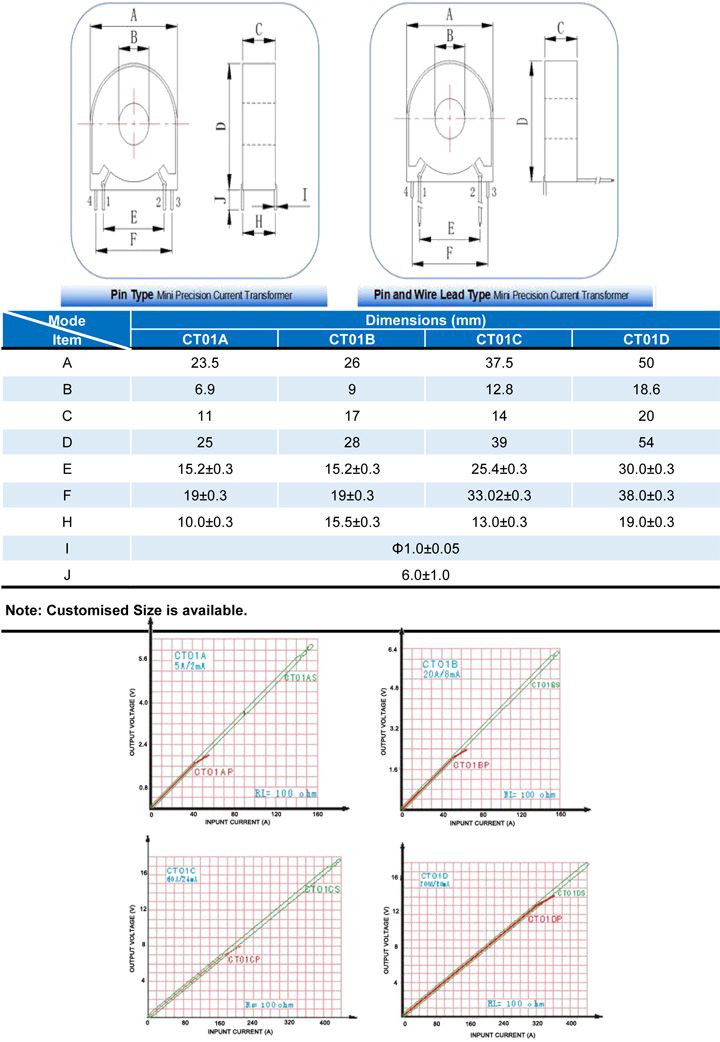

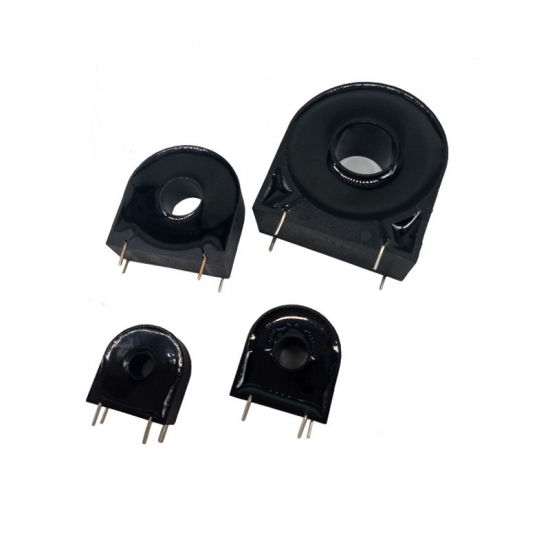

Pin Type, Pin&Wire Lead Type is available. Customized Size as request. Our standard Mechanical Specifications:

Mini Precision Current Transformer

 download here.

Precise Current Transformer

OEM design is supported. We design & produce goods based on specifications & drawing, specification including:

1. CT turns ratio, primary current, resistance load

2. The min size of hole of CT

3. CT size and accuracy



Main Application:

  •      Electronic energy meter
  •      Power transducer
  •      Precision power meter and other power & energy monitoring devices
  •      Over current protection circuit of motor and other electrical appliances




As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Mini Precise Current Transformer quickly!
