High saturate induction reduce volume of transformers, popular in inverter power application.

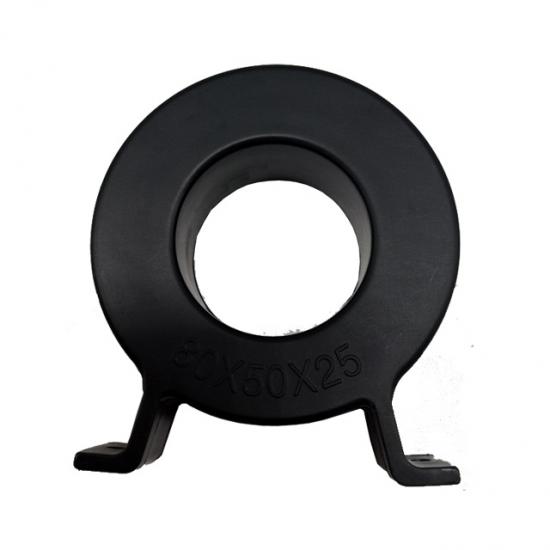

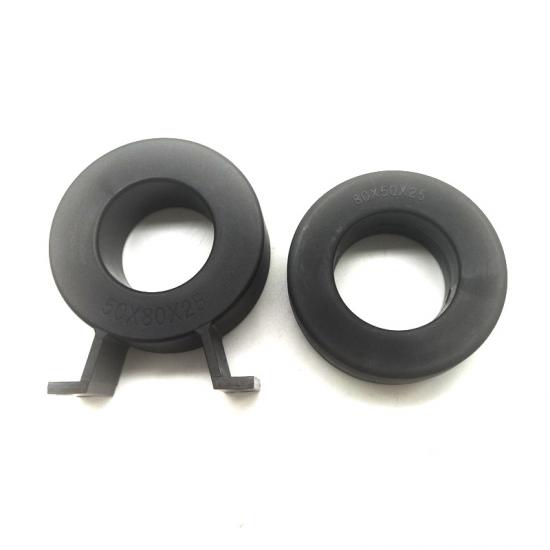

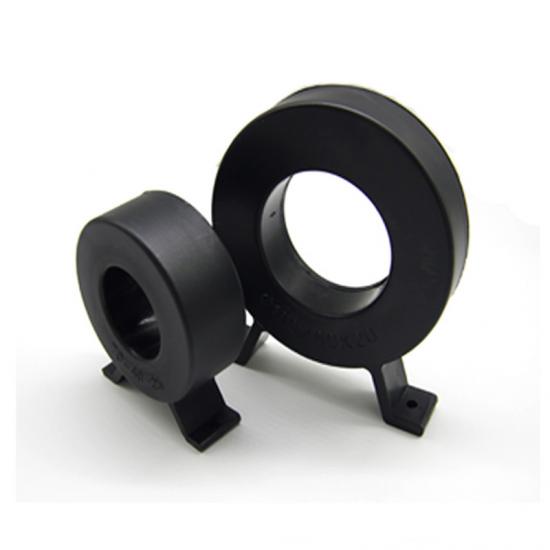

Item NO.:
NTL-805025
Core Size
Type No.
Core Size (mm)
Case Size (mm)
Cross-sectional area (cm2)
Magnetic Length
Weight
Power for Inverter welding machine (KW)
Output Current for Inverter Welding Machine (A)
OD
ID
HT
OD
ID
HT
(cm)
(g)
NTL-805025
80
50
25
82
46
30
4.69
23.56
801
5
120A 160A

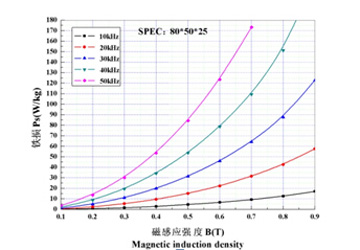

Core Loss VS Magnetic Induction Density
Basic Parameter
Nanocrystalline Core
Ferrite Core
Saturation Magnetostriction Induction Bs(T)
1.25
0.5
Residual Magnetic Field Density Br (T) (20KHz)
<0.20
0.2
Core Loss (20KHz, 0.2T) (W/kg)
<3.4
7.5
Core Loss (20KHz, 0.5T) (W/kg)
<35
Can not be used
Core Loss (20KHz, 0.3T) (W/kg)
<40
Can not be used
Permeability (20KHz) (Ge//Oe)
>2x104
2x103
Coercive Force (A/m)
<1.60
6
Saturated Magnetostrictive Coefficient λs
<2x10-6
4x10-6
Resistivity (µΩcm)
80
1X106
Curie Temperature (°C)
570
<200
Occupation efficiency
>0.70
---
Main Application:
Product Description:

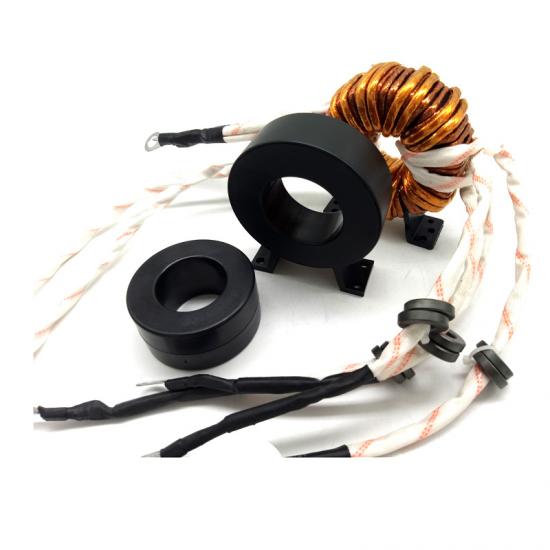

Both high frequency Nanocrystalline Core and Customized HF Power Transformer support for Welding Machine, Solar Inverter.
In meantime, related standard Nanocrystalline Core Download here.
As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Nanocrystalline Core for HF Power Transformer quickly!
