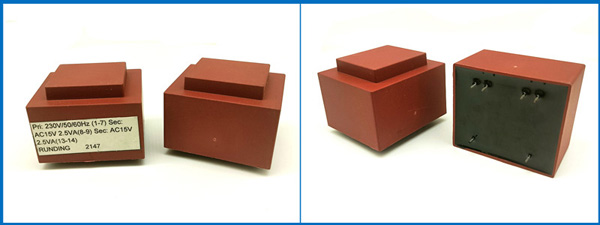

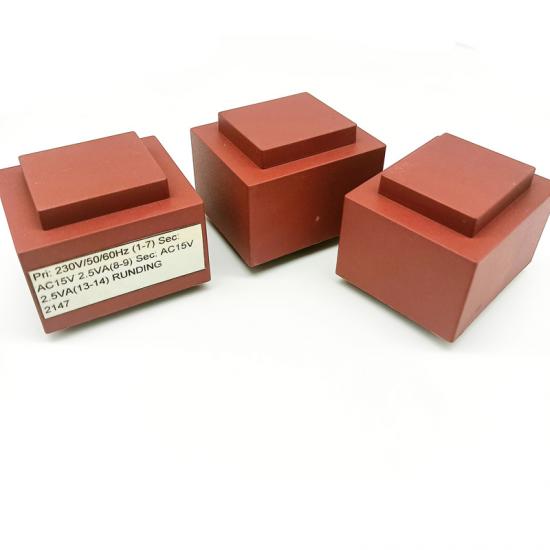

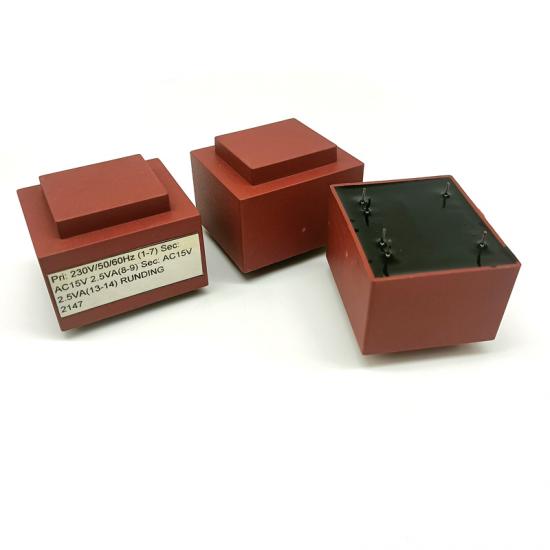

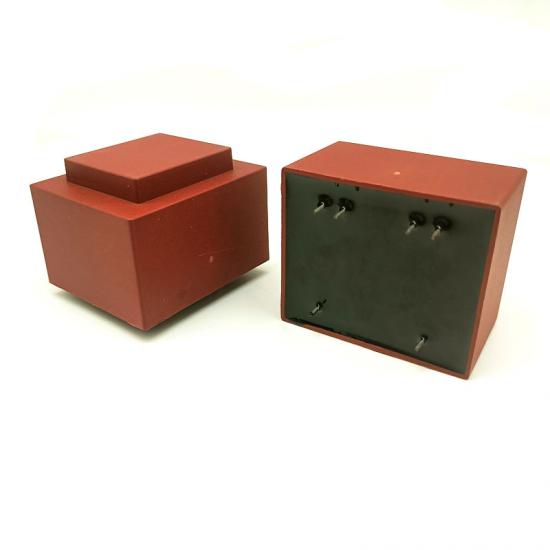

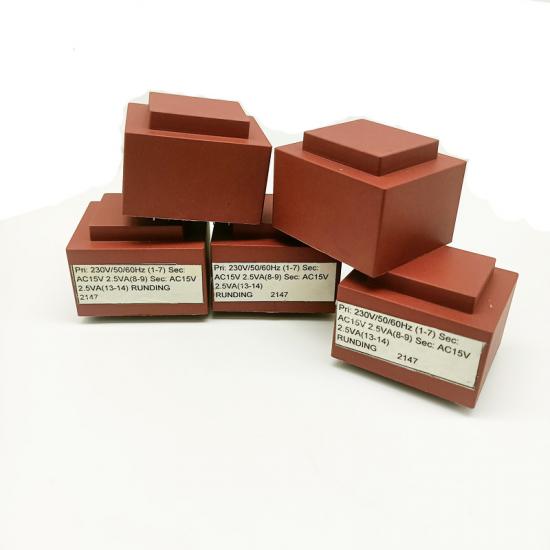

230V Encapsulated Power Transformer PCB Mount Sealed Transformer

High sensitivity sealed transformer with perfect temperature stability, excellent balance characteristics good for leakage circuit protection breaker.

Product Detail

Key Properties:

High sensitivity
Close to zero load shift and zero phase shift
Excellent balance characteristics
Perfect temperature stability
Small change for output voltage after passing the heavy current IDC
A variety of configuration and output characteristics

Electrical Specifications:

Input Voltage and frequency: 230V@50/60Hz
Seccondary Voltage: See Electrical Table
Insulation Resistance: 100M Ohm Min. @500VDC PRI. to SEC.
Hi-Pot: 4200Vrms 1minute @PRI. to SEC.

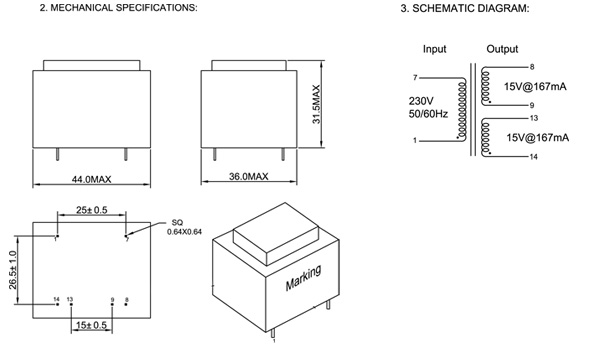

Material Specification:

Standard Series:

Item	Primary	Secondary	No-Load
Item	(V)	(V/mA)	Voltage(V)
1	230	6/534	9.2
2	230	9/356	13.95
3	230	12/267	17.8
4	230	15/214	22.2
5	230	18/178	27
6	230	24/134	35
7	230	2×6/267	2×8.90
8	230	2×9/178	2×13.40
9	230	2×12/134	2×17.50
10	230	2×15/107	2×22.30
11	230	2×18/89	2×25.80
12	230	2×24/67	2×35.90
13	115	6/534	9.2
14	115	9/356	13.95
15	115	12/267	17.8
16	115	15/214	22.2
17	115	18/178	27
18	115	24/134	35
19	115	2×6/267	2×8.90
20	115	2×9/178	2×13.40
21	115	2×12/134	2×17.50
22	115	2×15/107	2×22.30
23	115	2×18/89	2×25.80
24	115	2×24/67	2×35.90
25	2×115	6/534	9.2
26	2×115	9/356	13.95
27	2×115	12/267	17.8
28	2×115	15/214	22.2
29	2×115	18/178	27
30	2×115	24/134	35
31	2×115	2×6/267	2×8.90
32	2×115	2×9/178	2×13.40
33	2×115	2×12/134	2×17.50
34	2×115	2×15/107	2×22.30
35	2×115	2×18/89	2×25.80
36	2×115	2×24/67	2×35.90

Main Application:

Residual current circuit breaker
Earth leakage protection switch
Leakage circuit protection breaker

As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about encapsulated transformer quickly!
