Current Transformer Core

Split Core

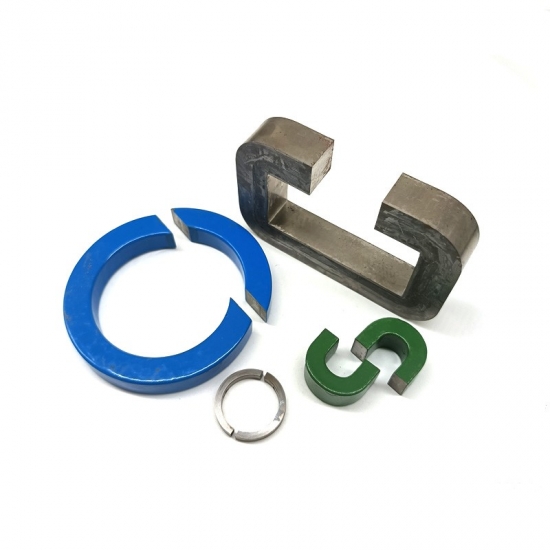

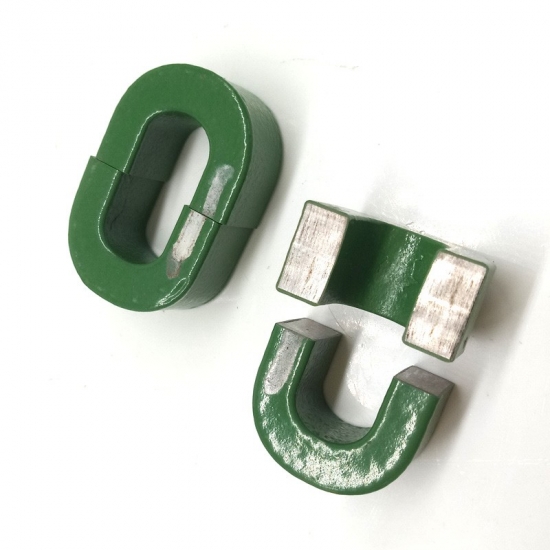

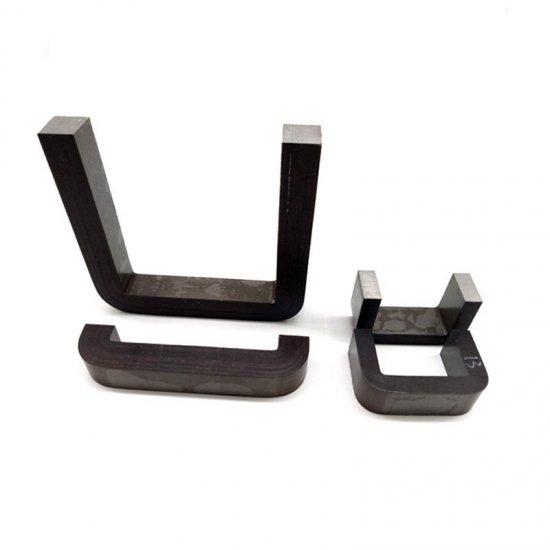

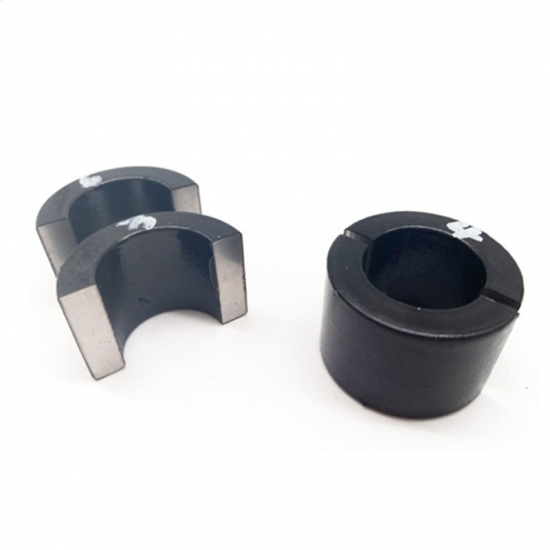

Nanocrystalline / Silicon Steel (CRGO) Cut Core

Nanocrystalline / Silicon Steel (CRGO) Cut Core

Flexible soft magnetic core design, widely used in high frequency, high power transformers for converters, in drives, traction, power supplies.

  • Product Detail

Key Properties:

  • Inherit the simple structure of the traditional C cores
  • Clamp-on core design, safer, easier installation, portable, don’t need to cut of the grid-power when adjust the inductance.
  • Energy conservation & environment protection, huge potential market


Main Option:

  •      Magnetic Material: Silicon Steel ( CRGO); Nanocrystalline
  •      Core Shape Design: Toroidal Core, Rectangular Core, Oval Core
  •      Cutting Location: Average Cutting, Un-equal Cutting

Typical Specification

Silicon Steel

Nano Crystalline

Bs (T)

2

1.2

HC (Oe)

0.5

0.1

Initial Permeability (µo)

1500

>100000

Max. Permeability (µm)

2 x 104

1 x 106

Resistivity

50

80

Curie Temperature (°C)

750

570

Crystallization

-

510/570

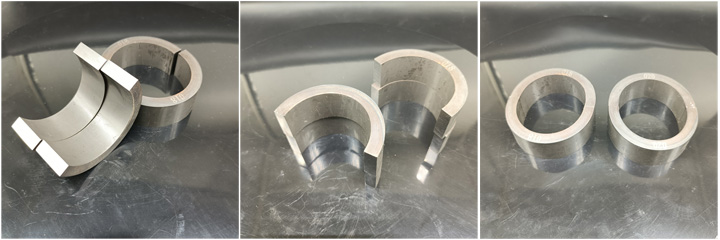

Split Cut Core


Main Application:

Widely used in high frequency, high power transformers for converters, in drives, traction, power supplies.

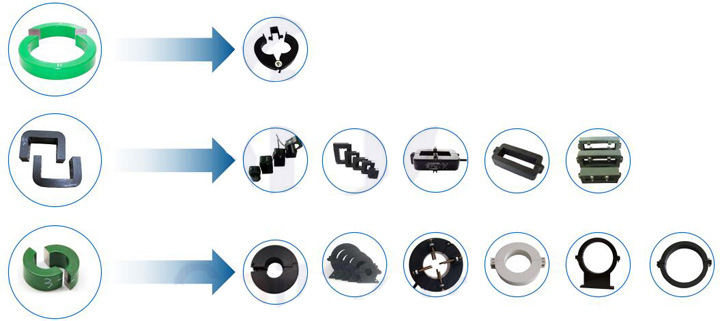

Cut Core Application

Produce Description:

We supply Nanocrystalline Cut Core and Split current transformers based on clients request, information request including:

1. Core Material:

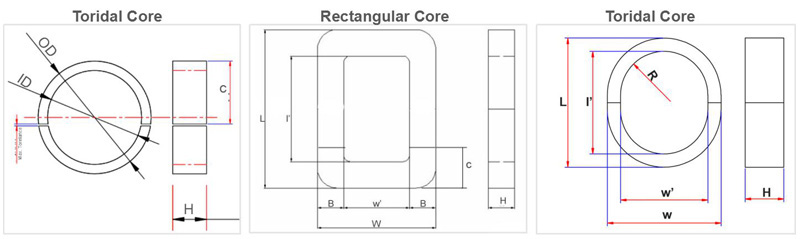

2. Detailed Size ( based on drawing):


cut cores



As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Split Cut Core quickly!
