Customized Common Mode Inductor produce, and expert suggestion from us with more stable electronic performance too.
As a green energy-saving sources, potovoltaic (PV) power system is popular in last dadecase. For the solar power systems, output voltage is low, to increase the output, switched iductor is requested. For One-Station supplier, we supply common mode inductors.
As an integral part of most EMI filters, the common monde inductor with very high impedance over a wide frequency range suppresses high frequency power supply spikes.Common Mode inductors require two windings, normally single layers, with each winding on opposite sides of the core to provide isolation. :

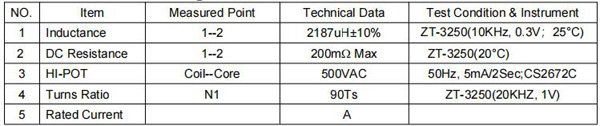

Electrical Characteristics @25°C
Notes: Comply with ROHS

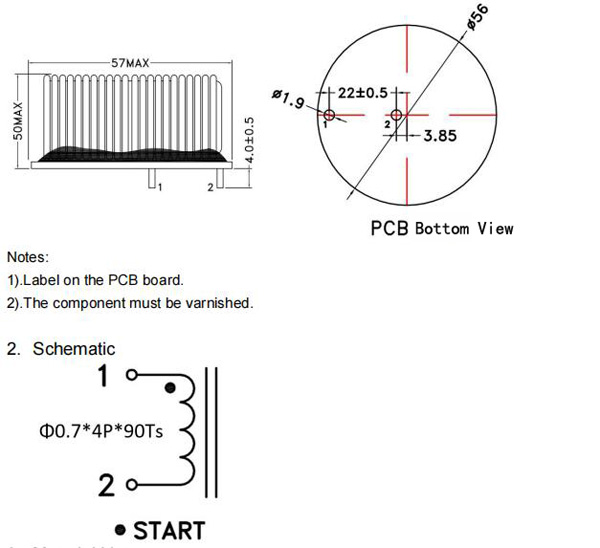

Mechanical Dimension and Schematic
Performance Characteristics:
Our solar inverter design solutions support application both in househould appliances, commercial application and industrial application from 3KW to 125KW. We supply One-stop station energy-saving, high-efficiency elctronic component technology solutions for photovoltaic/wind energy inverters, including:
Application Fields:
As an leading integrated manufacturer of magnetic components, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Photovoltaic Common Mode Inductors quickly!
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Our product lineup serves a diverse set of photovoltaic/wind energy inverters solutions, help you solve problems at one station.
The boost inverter inductors with sample switch modulation strategy, gurantee inverter has high voltage gain and high efficiency.
The DC EMI filter with fewer winding turns, but higher inductance., gurantee solar inverter has high voltage gain and high efficiency.
The AC Output EMI Filter with fewer winding turns, but higher inductance,compact size of low temperature rising, capable of long-term operation at higher working temperatures
Line filter is a kind of reflection filters, designed for electromagnetic interference (EMI) in the mains, and it is a frequency-selective two-port network usually composed of inductors, capacitors, resistors.
As an integral part of most EMI filters, the common monde inductor with very high impedance over a wide frequency range suppresses high frequency power supply spikes.
The common monde inductor withfewer winding turns, but higher inductance, owning very high impedance over a wide frequency range suppresses high frequency power supply spikes.
Split-core current transformers are designed to meet the growing demand of installation into existing networks. Our Split Core (open-able) CTs can be a savings overall in the labor cost savings.Simply clip these around the wires being read. Secure them in place with a zip tie, without disconnecting cables or busbar circuits.
