Power taking Current Transformer

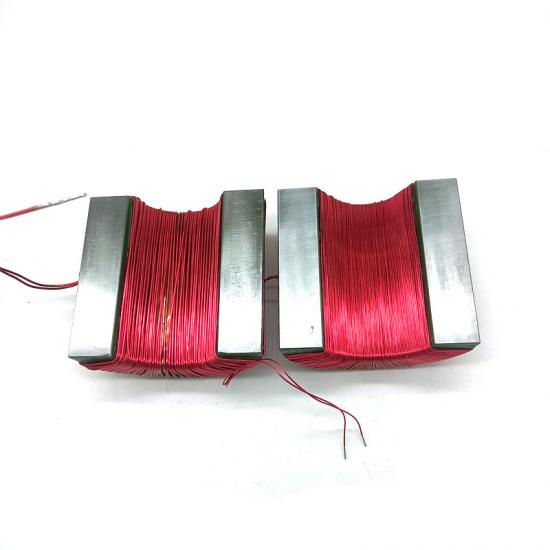

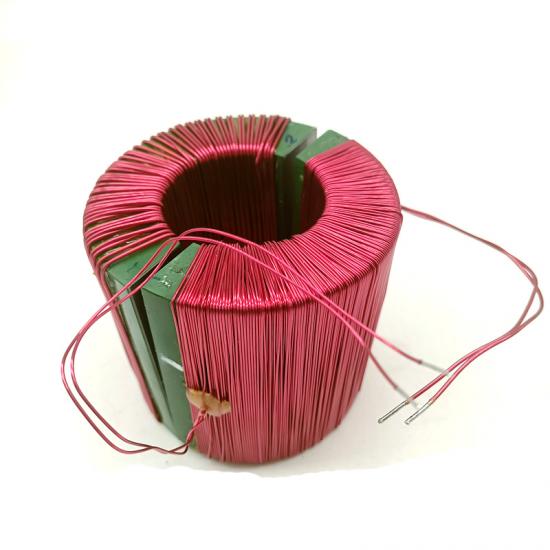

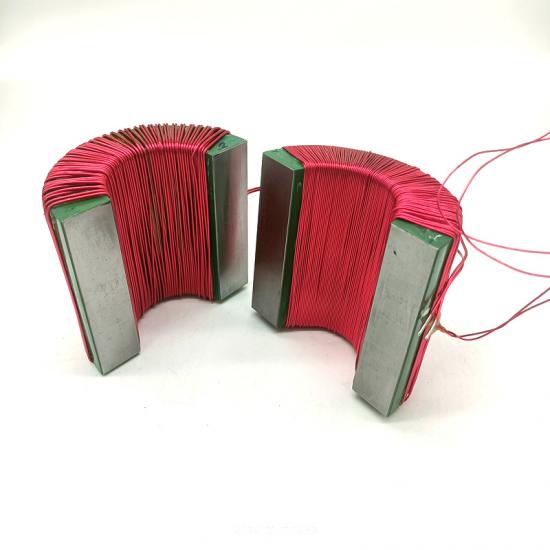

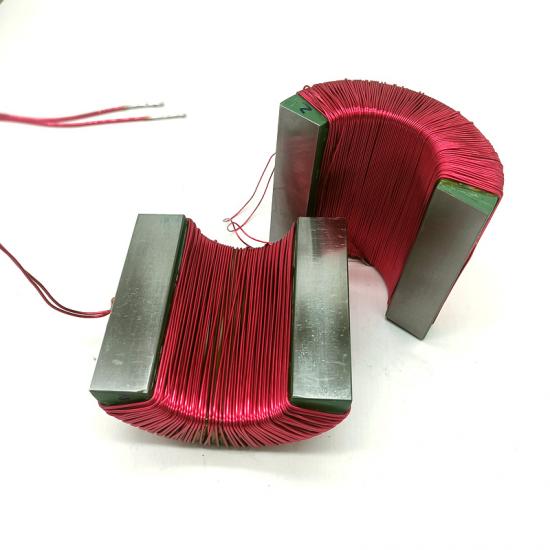

Power taking Current Transformer, widely used in high frequency, high power transformers for green energy application field.

Product Detail

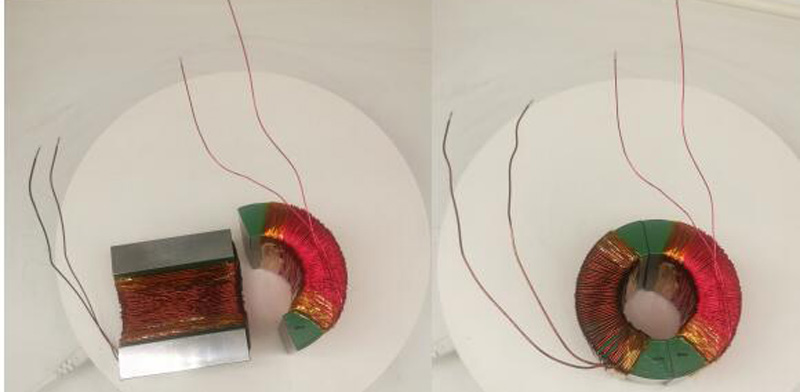

Core and Coil Winding:

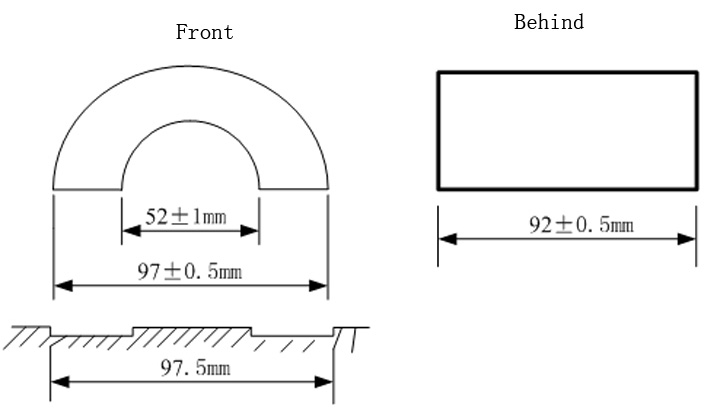

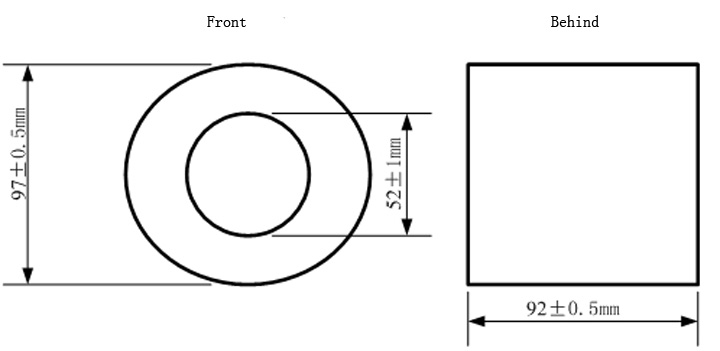

Core Dimension (Fig1)

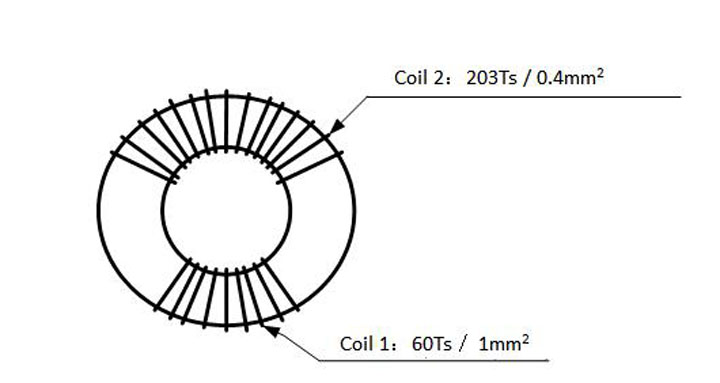

Coil winding（Fig2）（ Distance between winding area with cutting section >3mm）
Quantities of coil winding =2,
Rate of Winding turns Vs current
Coil 1：60Ts / 1mm2
Coil 2：203Ts / 0.4mm2

The ends of coil1 & coil2 are connected with lead wire, and lead wire length is 20 cm

Grinding:

Grinding the cutting section after cutting, Ground core should be:

Ground coil dimensions match the requirements of Fig 1
The secondary Voltage without load of Coi1 ≥24VAC when close the two halves coil and 10A 50Hz AC current passed through the center of the coil hole.

As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Power Taking Current Transformer quickly!
