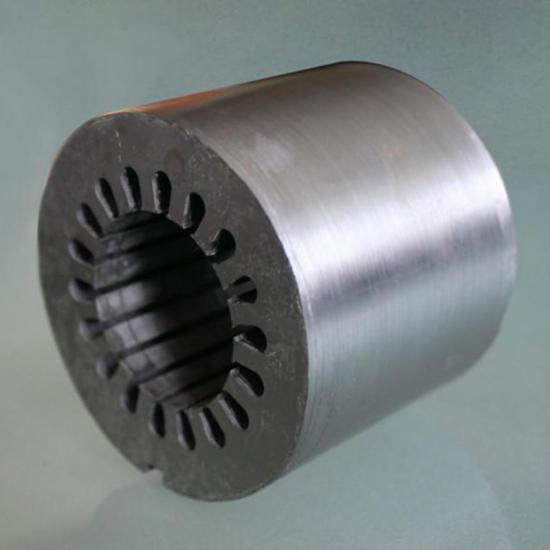

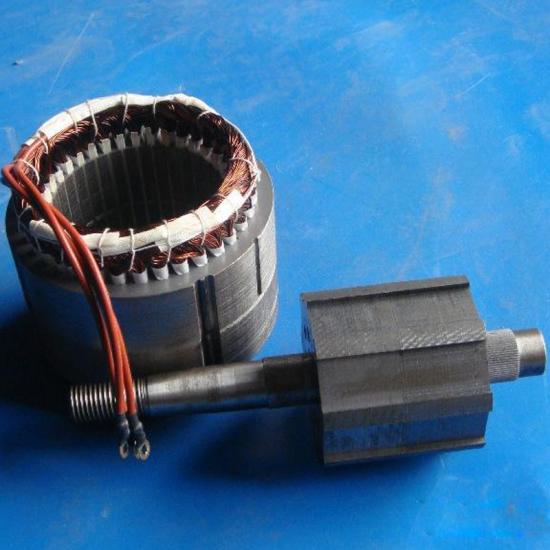

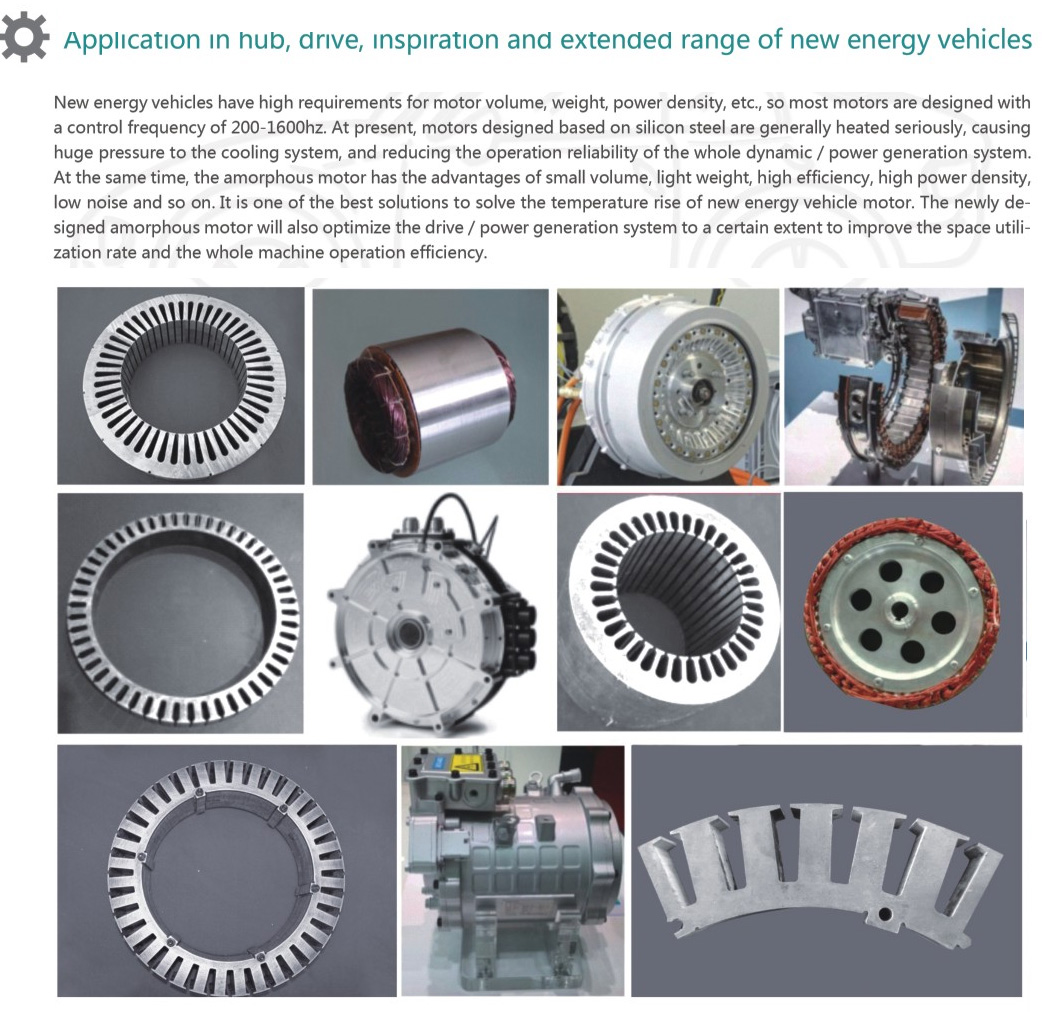

Green Power Amorphous Motor

Nanocrystalline cores for common mode chokes AL= 18.0 ~31.2uH @ 10KHz, ≤50mV

The inductive Power Supply Current Transformers usually installed outdoors or in underground cable trenches and tunnels, with the working environment maybe raining, moisture, water accumulation. Once the split core CT with poor structure, the core cutting surface will be easy to rust, which affects the power supply ability, increasing working noise, even can't work. After long time R&D, our Coilcore's latest inductive Power Supply Current Transformers reach IP68 standard, which can achieve zero noise operation.

High precision, wide linearity range for output current, suitable application in electornic energy meter, power transducer, etc.

High accuracy nanocrystalline cores, for low voltage instrument current transformer, medium voltage instrument current transformer, high voltage instrument current transformer in industry application.

The overhead output power supply device is an open structure, with an aluminum alloy case, it's  suitable for overhead transmission lines with a voltage of 35KV and above. The product obtains a low voltage and safe working power supply through the principle of electromagnetic induction, and provides electrical power to the monitoring device with the assistance of photovoltaic panels.

The boost inverter inductors with sample switch modulation strategy, gurantee inverter has high voltage gain and high efficiency.

VITROPERM 550HF Matereial Core, Inductance 60.8 µH ≤ AL ≤ 117 µH @Ieff x N = 25 mA  f = 10 kHz

High saturation magnetic induction (Bs), popular used in vehicle audio application.
