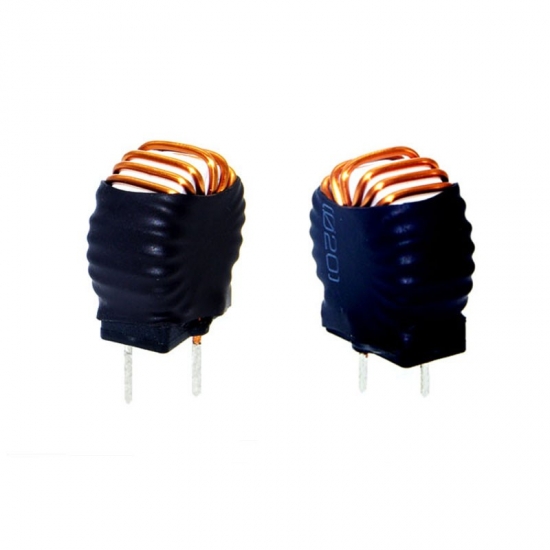

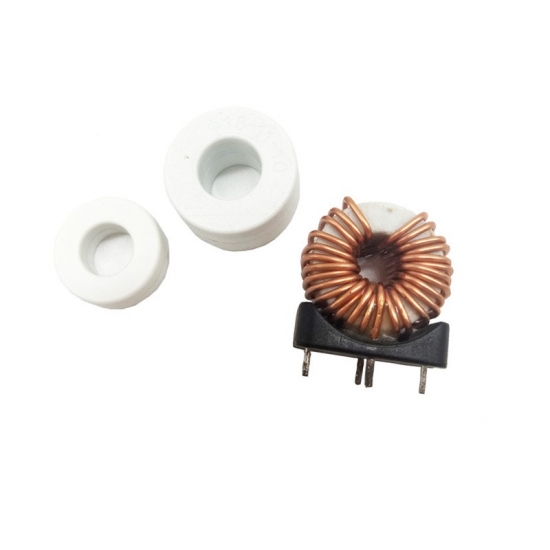

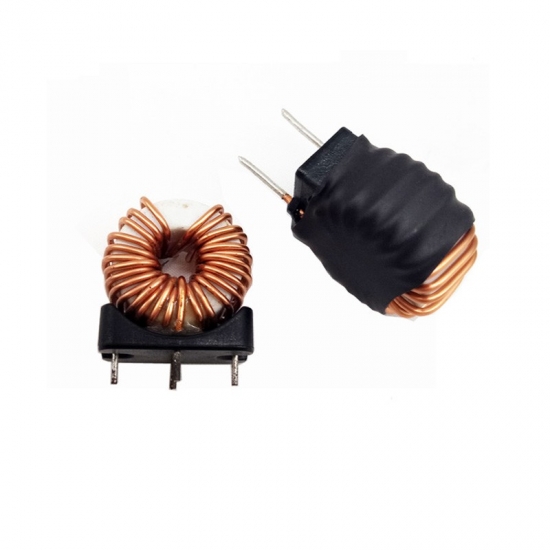

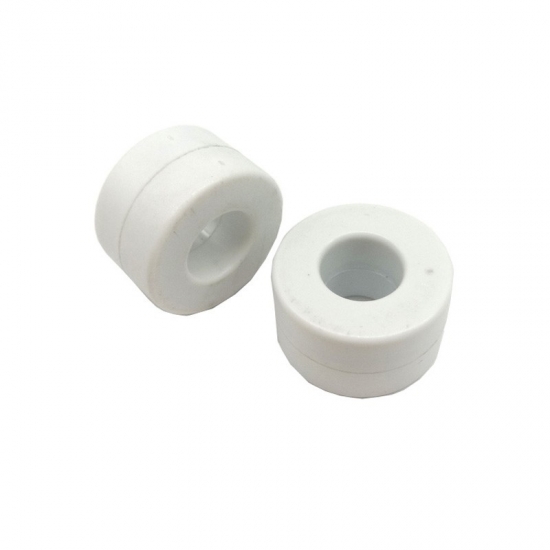

Toroidal Soft Magnetic Amorphous Core for Car Audio

Toroidal Soft Magnetic Amorphous Core for Car Audio

High saturation magnetic induction (Bs), popular used in vehicle audio application.

  • Product Detail

Key Properties:

  • High saturation magnetic induction (Bs)
  • Low core loss compared to other core materials
  • Good frequency and temperature characteristics,usable to 3000KHz
  • Good DC Bias characteristics
  • Low leakage flux
  • Size saving and lighter weight, compared to others


Typical Parameter



Density

7.3g/cm3

Curie Temperature

Tc =410°C

crystallization temperature

Tx =530°C

Saturation

Bs= 1.56T

Electrical Resistivity

ρ=130Ω-cm

Saturation Magnetostriction

λs=27x10-6


Product Description:

For Car Audio application Amorphous core, we supplier from core to coil based on clients request.

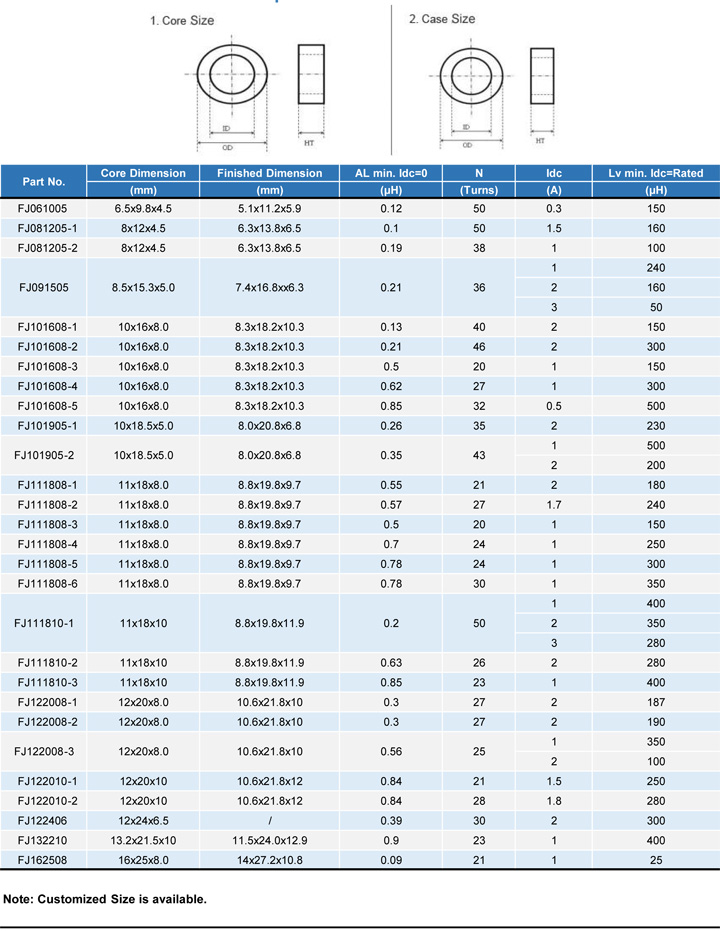

Standard Product list:

vehical amorphous core

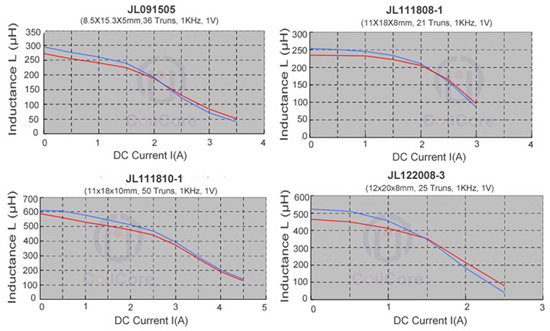

download, and part test report reference as below:





OEM design is supported. We design & produce goods based on specifications & drawing, specification including:

1. Bare core size, Size finished

2. Parameter, AL @ DC bias =0A ;  AL@DC bias=1A/2A/3A....

3. 3. What diameter of copper wire for coil.



Main Application:

  • Output choke coil for SMPS
  • Choke coil for DCC/DC Converter
  • Normal mode choke coil
  • Choke coil for adapter and battery charger
  • PFC Choke Coil
  • Car Audio




As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Vehical Amorphous Cores quickly!
