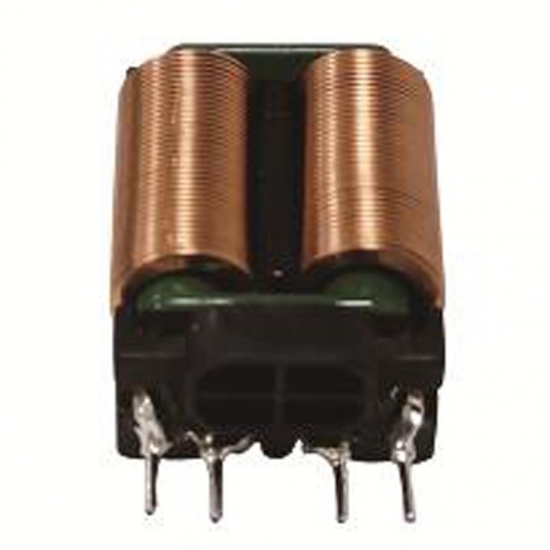

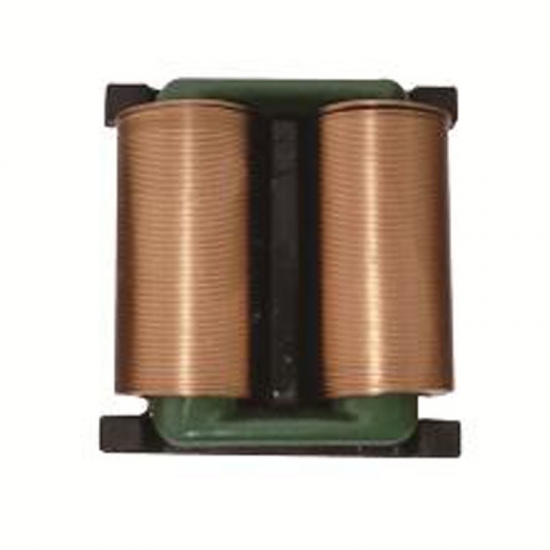

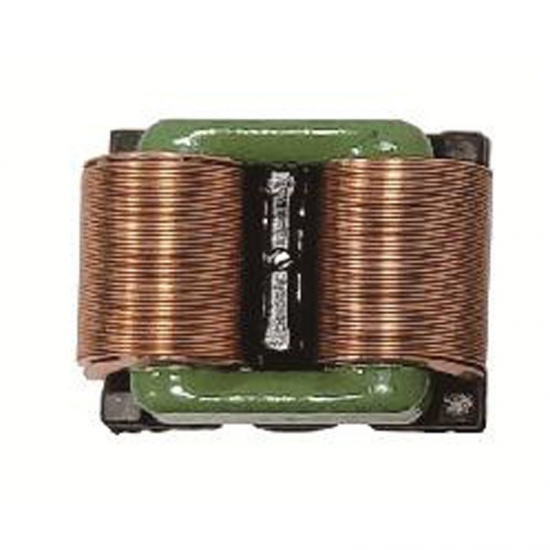

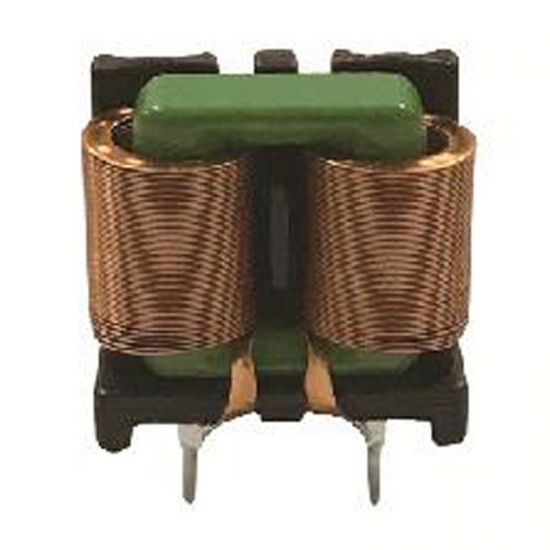

Copper Wire Winding Flat Wire Transformer

Copper Wire Winding Flat Wire Transformer

Lower DC resistance, extremely small capacitance distribution, excellent heat dissipation, perfect replacement of common CMC, which is popular used in power line solutions.

  • Product Detail

Transformer Key Properties:

  • Comparing round copper wire, flat copper wire with more excellent performance, higher current ( unit current density reach 1.5~2.0 times) & smaller volume (0.5~1.0 times).
  • Lower DC resistance, extremely small capacitance distribution, perfect heat dissipation.
  • Closed magnetic circuit design, small magnetic leakage, stable impedance balance, good conducted radiation effect and EMI effect.
  • Automatic machine winding, which guarantee stable quality, competitive production cost, more time-saving, better quality, higher efficiency during final application.
  • Stronger insulation, extending power lifespan.

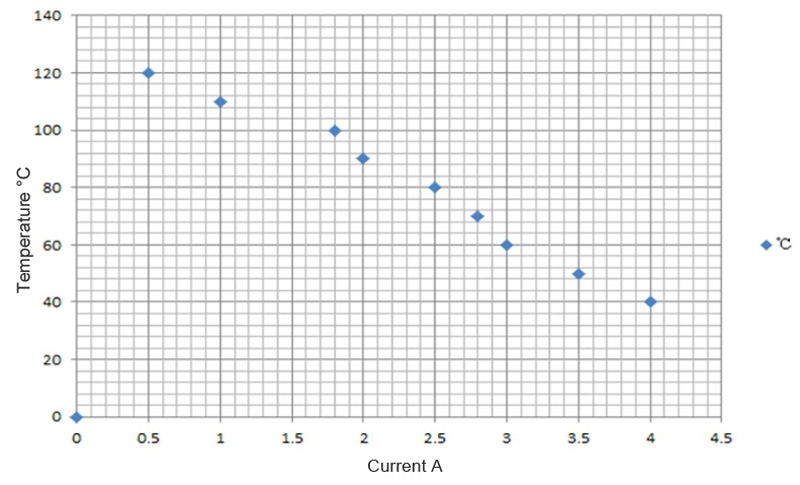

Temperature vs. current curve:




<40°C, Working Current 0-4A

<60°C, Working Current 0-3A

<80°C,Working Current 0-2.5A

<110°C, Not supported

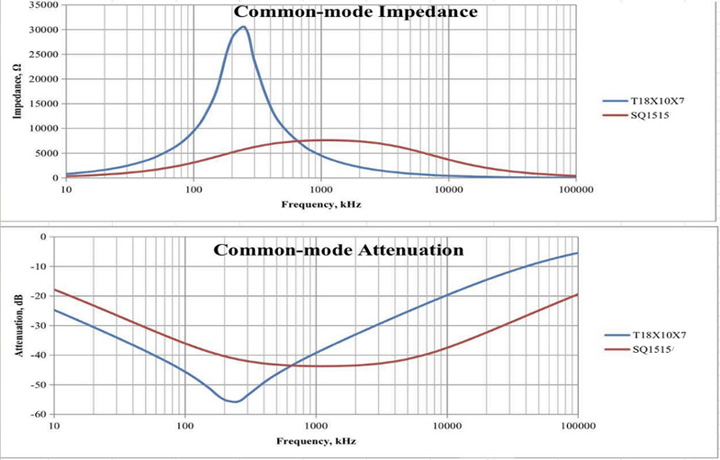

SQ Series Common-mode Impedance & Attenuation:

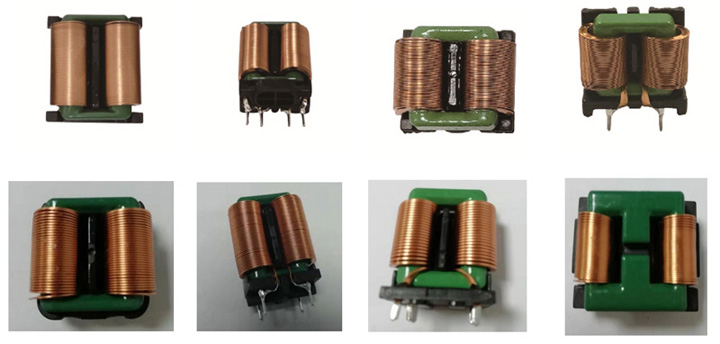

 Series Solution:

  • SQ Series --SQ1010  SQ1212   SQ1515   SQ1918   SQ2018    SQ2219  SQ2418   SQ2820   SQ3324  SQ2219   SQ2319   SQ2018    SQ2118

  • SMD Series

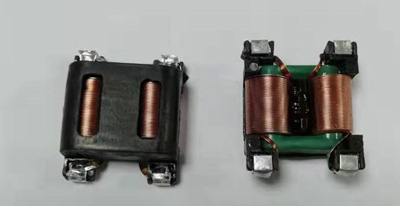

Flat Wire Transformer


Typical Parameter

Core & Wire

Square closed magnetic core & Automatically winding flat wire

Rated voltage

AC / DC80V ~ 280V

Insulation withstand voltage

AC2.0KV 60SEC

Insulation resistance

100MΩ Min. DC 500V

Flammability compliance

UL 94 V-0

Working temperature

-40°C ~ + 125°C (including coil temperature rise)

Storage temperature

-40°C ~ + 125 °C


Main Application:

Flat wire transformer is a perfect substitute replacement of common CMC, which is popular used in various power line solution, including: LCD TV, power adapter,switching power supplier, LED ultra-thin power suppliers, LED drive circuits, TP power supplier, Industrial Power Supplier, Computer Power Supplier,  electric vehicle, solar energy, automotive electronic equipment, industrial equipment, office automation equipment, household appliances, digital products, inverters, etc.

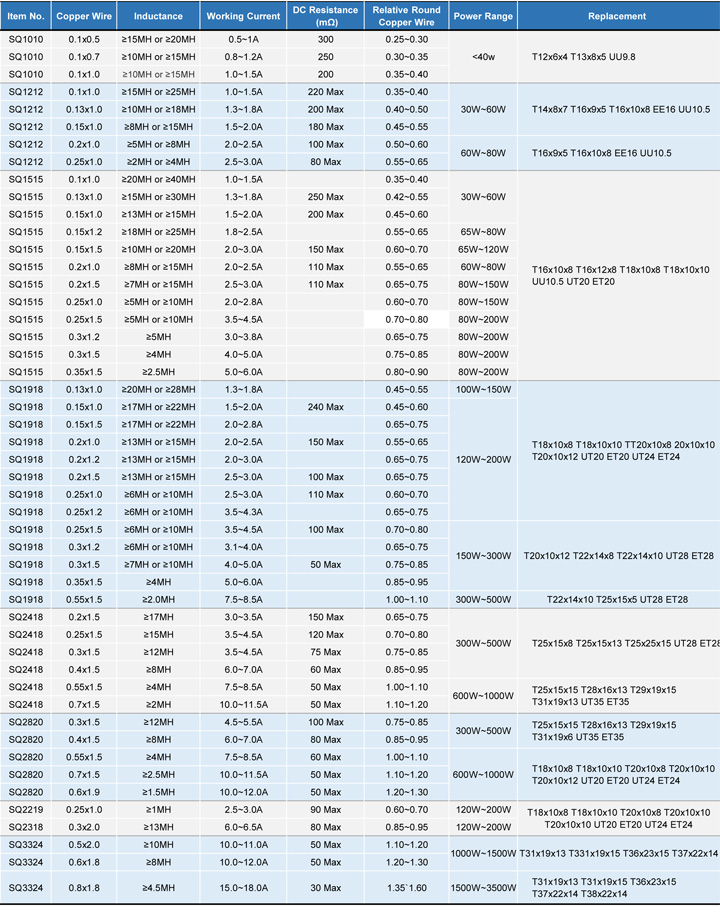

Different series options details:

Flat Wire Transformer

download here.





As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Flat Wire Transformer quickly!
