For the soft magnetic materials, such as amorphous and nanocrystalline ribbons, in order to improving their inherent magnetic hysteresis characteristics and optimizing high-frequency performance, a special heat treatment is requested.The transverse magnetic furnace, which possesses unique properties, has been one of the key processing equipment for magnetic materials

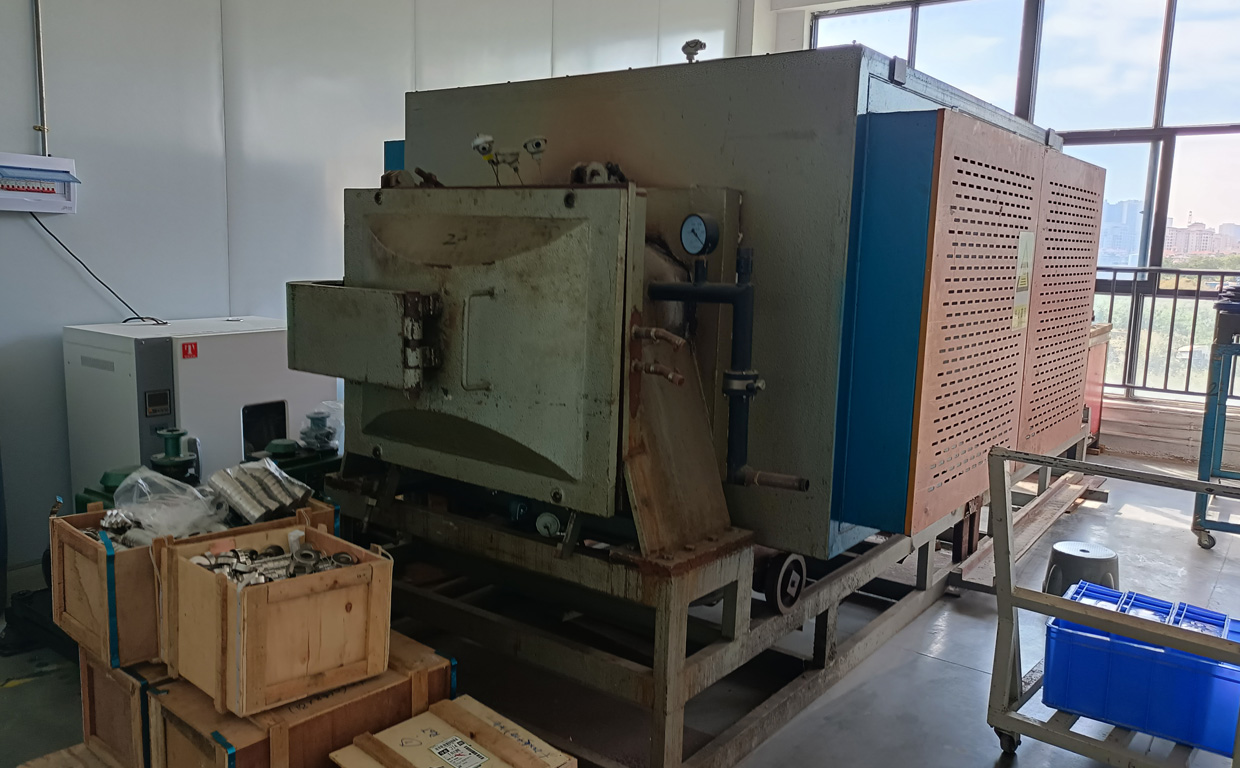

For horizontal magnetic annealing machine, following our experiences show with you:

A.  The standard furnace diameter in the market is 300mm.

B.  Since the limited inner size of furnace, manufacture usually used it for small size cores, such as common mode choke core, which OD <50mm.

C.  It could cover about Max.100kgs single time, which limited productiondairy capacity.

Common vacuum type stove is for normal current transformer cores’ hardening.

horizontal magnetic annealing machine with Argon Gas have more stable furnace temperature, which can guarantee higher consistency among cores. It’s about USD30 000/set.

For the vertical magnetic annealing machine, following our key parameters show with you:

A.  The furnace diameter is 600mm.

B.  The Furnace magnetic field can reach 1000Gs. Thus the core’s magnetic field can reach 6000Gs.

C.  It could cover about 250-300kgs per time, The daily output value of each stove is 500kgs.

E.  It’s Full Argon Gas Type.

D.  Comparing to horizontal type:

1). vertical type with higher magnetic field, it’s good for Welding rectifier cores and bigger quantity CMC cores.

2). vertical type with larger capacity, the output value is much higher; in mean‐time, we know each time the furnace need risen to a certain temperature firstly, then reduce to a specified temperature to put cores inside, during this process, it consumes large electricity power. The vertical type machine will save more grid power, saving more cost

To achieve the best cost-effectiveness, factory request consider the raw material's characteristics, performance request, workshop production scales during transverse magnet furnace choose.
