Customized Power Inductor

  • June 28. 2022

The power inductor is an inductor with a large current passing through it, comparing traditional inductor, it’s with small size, high Q value, low impedance, high efficiency, low temperature rise, customized.

When design the power inductors, engineer pay attention to optimizing the click structure, to guarantee the internal magnetic field of products becomes more uniform, and the power inductors winding wires must meet requirements. The power inductors are popular used in DC-DC (power module) loops to adjust power output, stabilize current and store energy, such as switching power supplies, green energy vehicle charging piles.

We, Coilcore have a experts team on power inductors design, which could meet different customers electronic parameter request. Following several projects show:


Project 1: Hydrogen Fuel Boost Inductor

superiority

Electronic Parameter

Customized structure, minimized size, installation space saving.

Peak Input Current: 100A

Multi-strand Litz wire winding, excellent softness.

RMS Input Current: 70A

High temperature & pressure resistance.

Working Frequency: 50KHz

Powder coated core, ultra-low core loss.

Inductance: 125uH

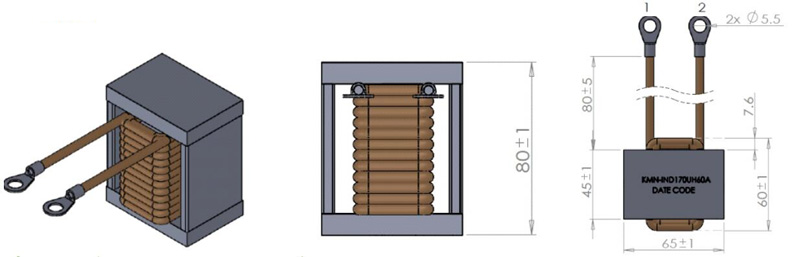

Hydrogen Fuel Boost Inductor


Project 2: Hydrogen Fuel Boost Inductor

superiority

Electronic Parameter

Flat structure design, meet installation height request.

Voltage Input: 120V

Bracket fixed, easy installation.

Voltage Output: 500V

Copper foil winding, flat wire terminals

Peak Input Current: 220A

Good heat dissipation performance

RMS Input Current: 200A

Low core loss.

Working Frequency: 7KHz

Low temperature rise.

Inductance: 300uH

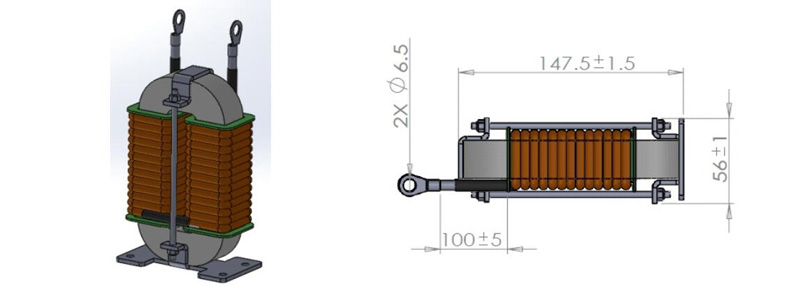

Hydrogen Fuel Boost Inductor


Project 3: 185KW, MMC (Modular Multilevel Converter) Bidirectional (photovoltaic) charging - front bridge arm inductance

superiority

Electronic Parameter

Customized structure, minimized size, installation space saving.

Voltage Input: 200V

Voltage Output: 700V

Multi-strand Litz wire winding, excellent softness.

Peak Input Current: 100A

RMS Input Current: 70A

High temperature & pressure resistance.

Working Frequency: 50KHz

Powder coated core, ultra-low core loss.

Inductance: 125uH

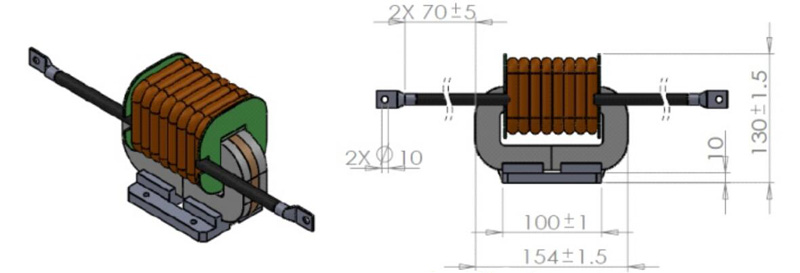

185KW, MMC (Modular Multilevel Converter) Bidirectional (photovoltaic) charging - front bridge arm inductance


Project 4: 10KW locomotive fire-free loopback DC/DC resonant inductor

superiority

Electronic Parameter

Multi-strand Litz wire winding, ultra-low core loss,  terminal welded directly.

AC Current Input: 40A AC

Input DC Bias: 26A DC

The bridge arm inductor is designed with a vertical heat dissipation aluminum base plate to save horizontal space.

Peak Input Current: 100A

Resistance: 7m OHMS

Ultra-thin nanocrystalline ribbon cores reduce size and improve performance.

Working Frequency: 10KHz

Pressure resistance: 2500V DC/ 60S

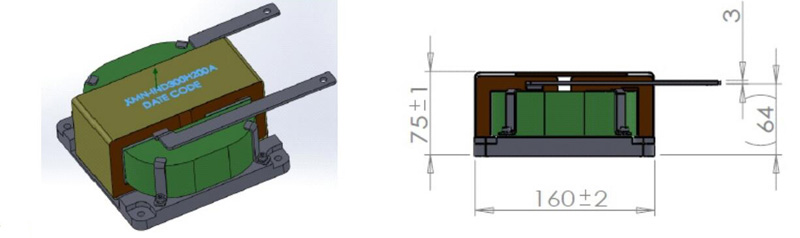

10KW locomotive fire-free loopback DC/DC resonant inductor
