Customized Power Inductor Project Show

  • July 22. 2022

Coilcore expert in power inductors design and obtain global positive feedback, here we show more projects again:

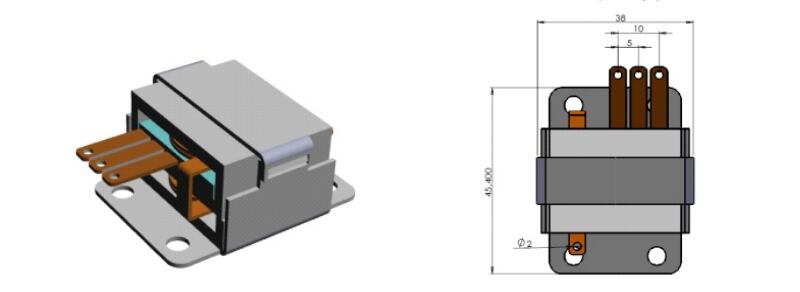

Project 1:3.5KW, Magnetic Integrated LLC Transformer

superiority

Electronic Parameter

Patent for appearance structure and winding structure.

Rated Power: 3.5KW

The resonant inductor and the main transformer are integrated magnetically integrated structure design to reduce cost and save space.

Voltage Input: 400V

Voltage Output:12V

The upper end is the resonant inductor, the lower end is the transformer, and the resonant inductor and the primary of the transformer are the same winding structure.

Working Frequency: 50KHz

Turns Ratio: 14:1:1

Fixed bracket installation, good heat dissipation, low loss and low temperature rise.

Primary Inductance: 500uH

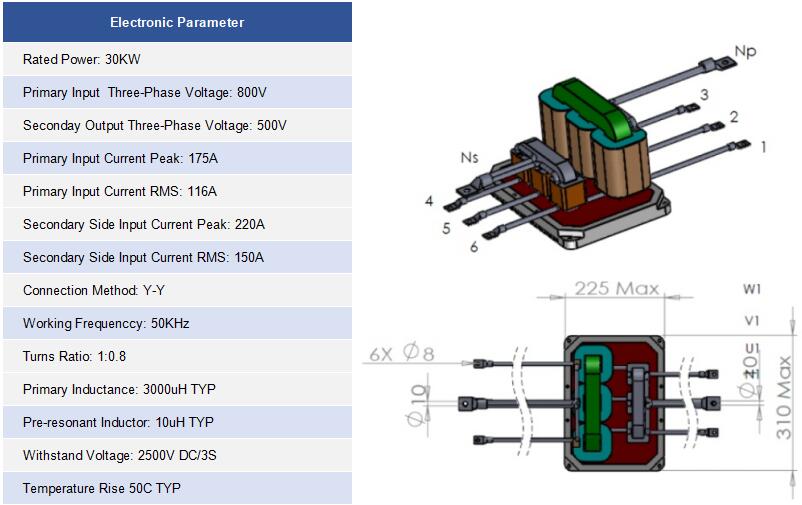

Project 2: 30KW Bidirectional Charging Pile-Three Phase Full Bridge Phase Shift Resonant Transformer

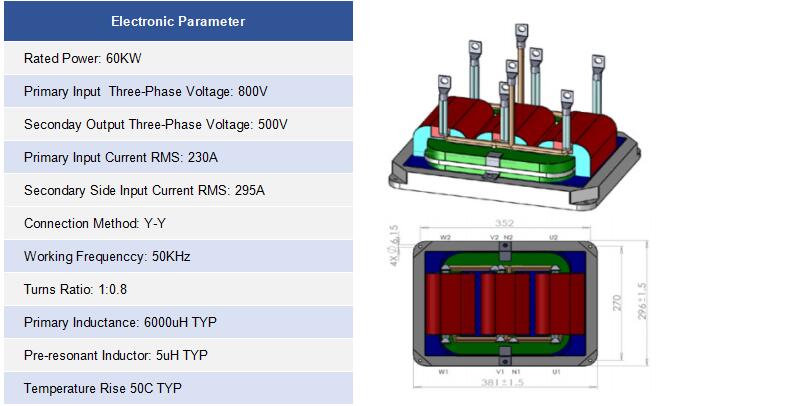

Project 3: 60KW Bidirectional Charging Pile-Three Phase Full Bridge Phase Shift Resonant Transformer


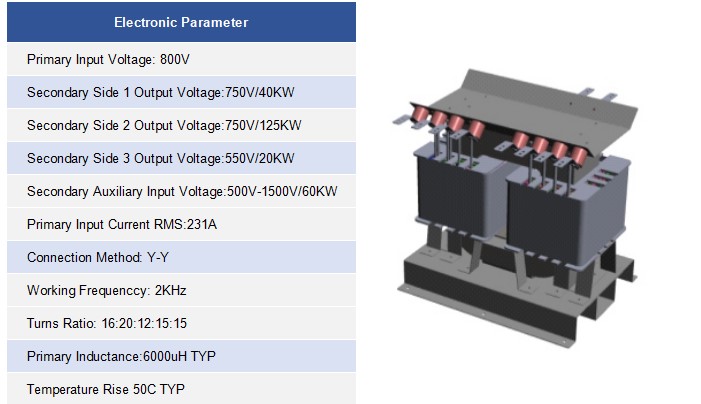

Project 4: 185KW, MMC (Modular Multilevel Converter) Bidirectional (photovoltaic) charging - front bridge arm inductance
