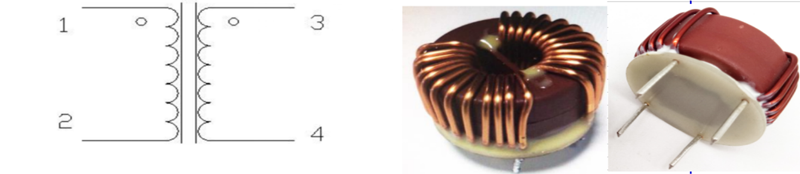

Toroidal common mode choke for EMI suppression

Chokes for EMC filters

We plan use them before LED constant voltage 12V supply.

Inductance 10mH or higher

Rated current 1.5A

Rated voltage 250VAC

Insulation breakdown test (winding to winding) 60 sec @  1500VAC

Design- horizontal PCB mount, through hole.

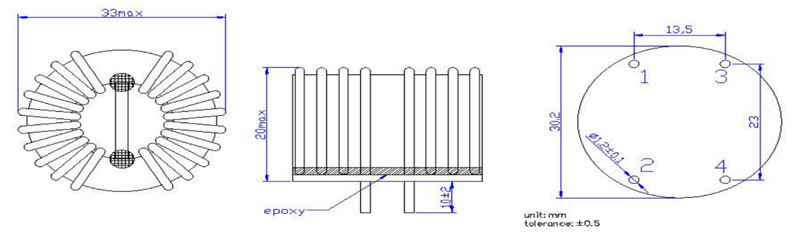

Dimensions  must not exceed: 28*18-12cm,

width and depth - 35mm

Main Application:

·  EMC filters

·  Home Application

·  Switched -mode power supplies (SMPS), Power supplies

·  Solar inverters

·  Uninterruptable power supplies (UPS)

·  Welding equipment

·  Wind generators

·  Frequency converters

Common mode inductors have large impedance and insertion loss under the earth's magnetic field, and have an excellent inhibitory effect on Ruoduo interference; common mode inductors show no resonance insertion loss in a wide frequency range.
