With excellent technology support,Coilcore factory have strong ability to produce Commond Mode Choke coils, quality equal to Janpan MetalGlass enterprise's Standard，following 4 Series details description:

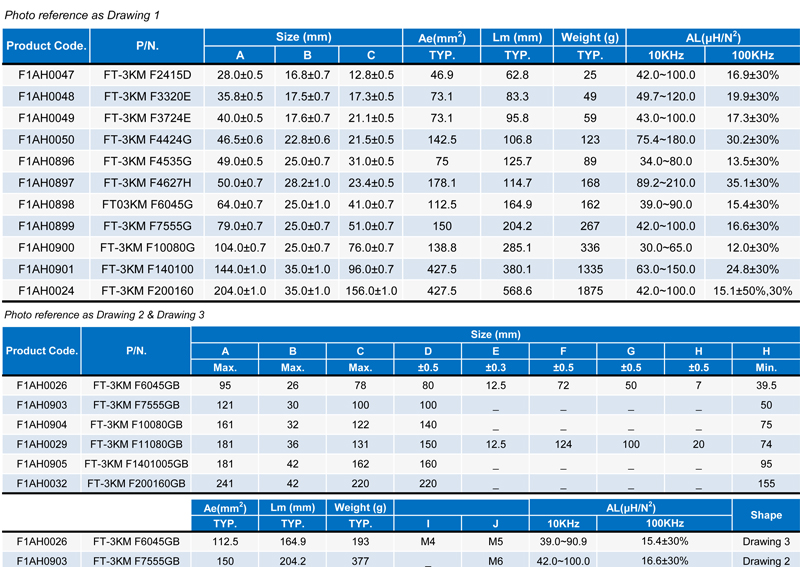

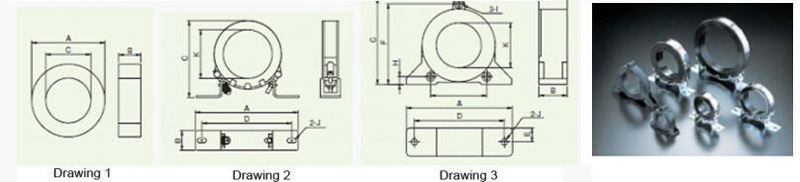

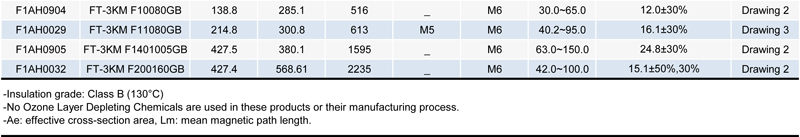

FT-3KM Series Commom Mode Choke used in Single Phase, Three Phase Electronical application.

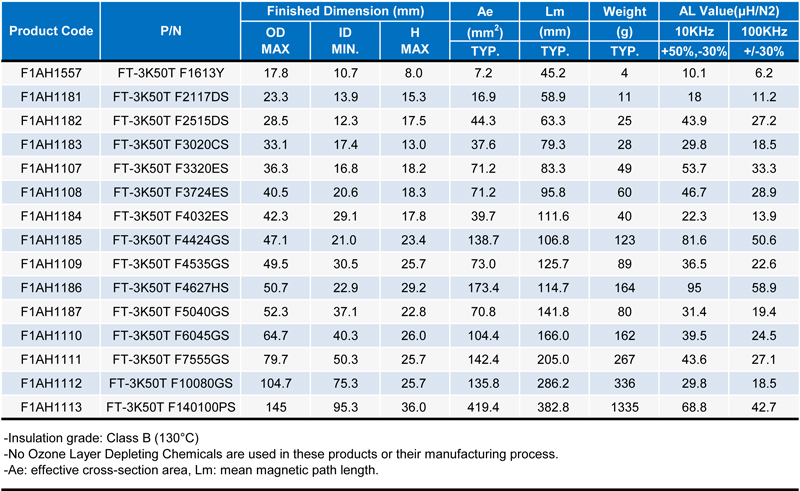

2).FT-3K50T Series ( Equel To Coilcore's HF series)

Common MOde CHoke Core, F series with FINEMET FT-3K50T,with higher impedance at MHz Band than that of FT-3KM, realizes effective noise reduction at AM radio Band.

FINEMET FT-8 series, with high DC Superposed characteristics, effectively suppresses large common mode current from high load inverters without magnetic saturation.

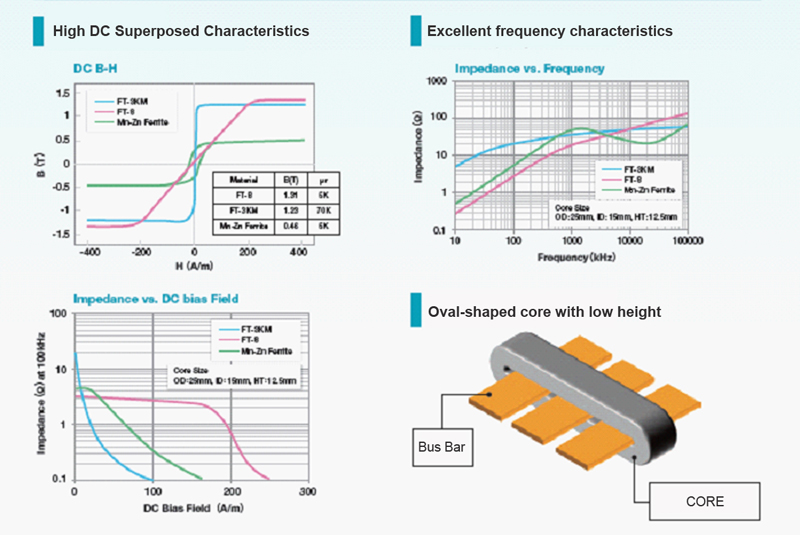

Advantage

• Excellent DC Supreposed characteristics
• Excellent frequency characteristics
• Oval-shaped core with low height

Outline & Features

Application

• l HEV, EV, Traction Inverter, Charger, etc.

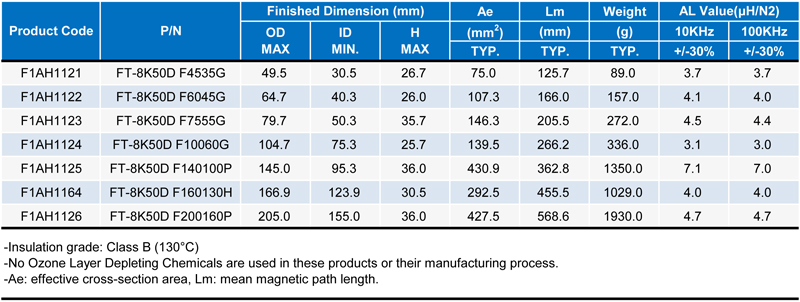

4). FT-8K50D Series

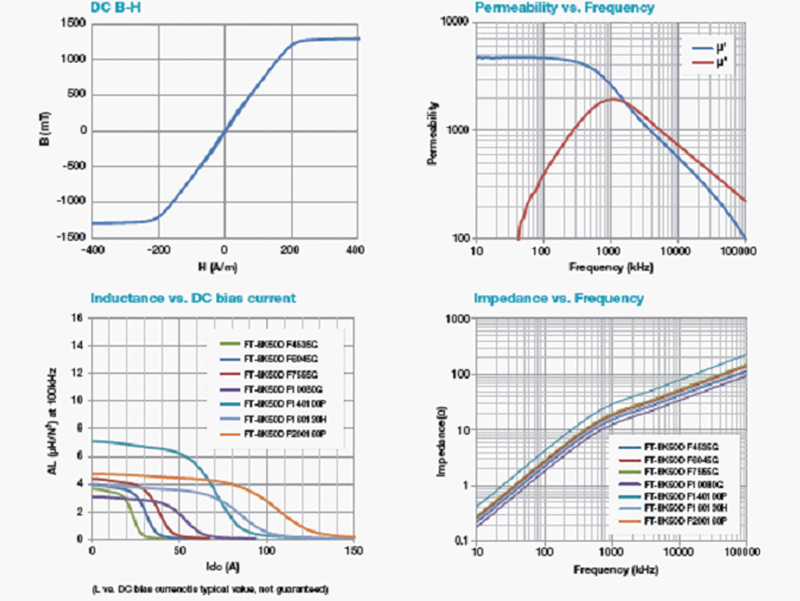

Common mode choke core, F series with FINEMET FT-8K50D, realizes higher impedance at Mhz band and high DC superposed characteristics effectively suppress larger common mode current without magnetic saturation.
